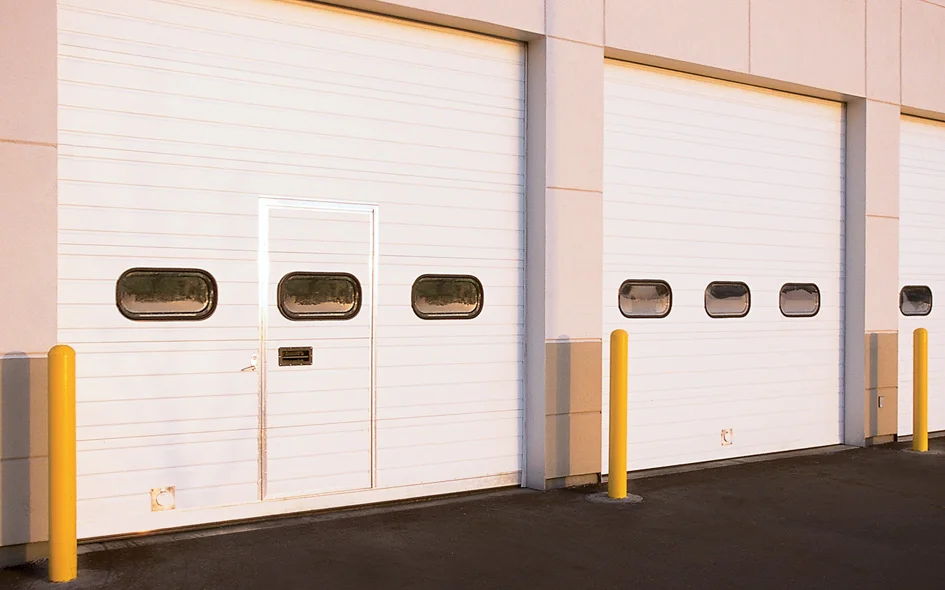

Thermacore® Model 592 sectional steel doors with viewing windows, designed for commercial applications, showcasing superior thermal efficiency and durability.

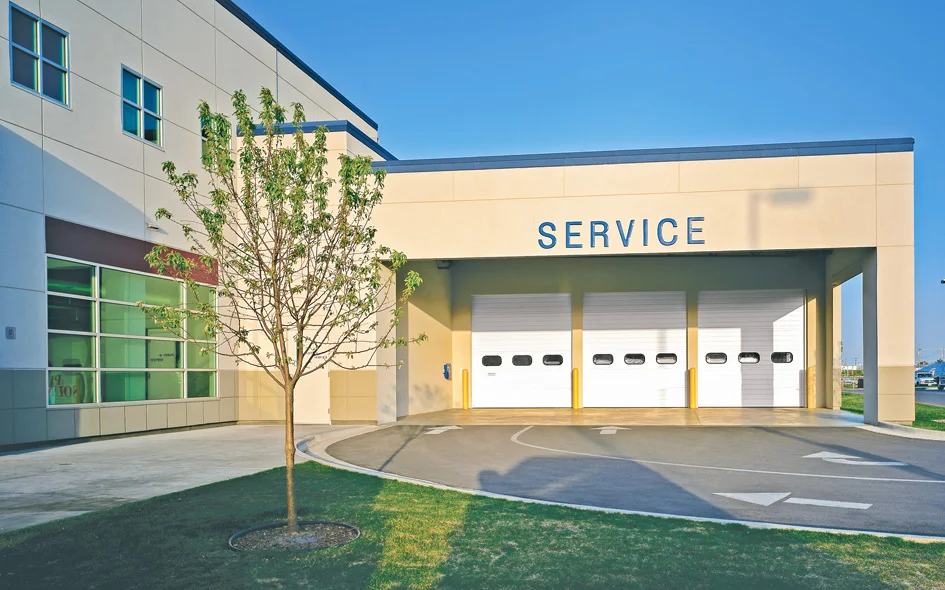

Service area with Thermacore® sectional steel doors, featuring three white service doors and a "SERVICE" sign, surrounded by landscaping and a clear blue sky.

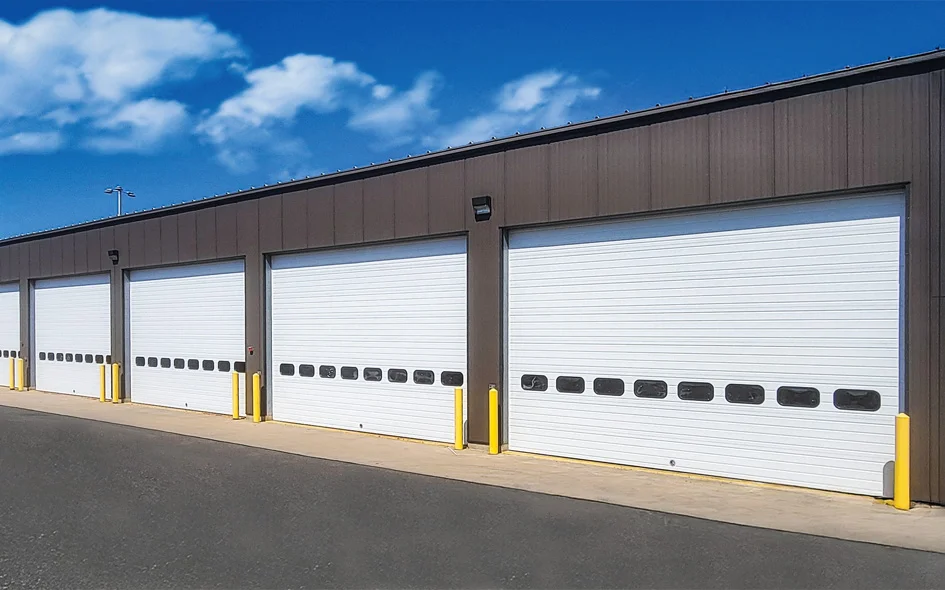

Thermacore® Model 592 sectional steel doors in commercial setting, showcasing superior thermal efficiency and air infiltration features, with a clear blue sky backdrop.

Thermacore® Sectional Steel Door - 592

Model 592

The Thermacore® Model 592 offers superior thermal efficiency for heavy-duty applications. It is an ideal choice for applications that demand the highest levels of thermal efficiency, air infiltration, and wind load resistance.

With a U-factor of .10 (R-value of 17.5) and one of the best overall air infiltration ratings in the industry, the Thermacore® Model 592 is one of the most thermally efficient door system in its class.

The Thermacore® product line features steel-polyurethane-steel panel construction which provides a thermal barrier that withstands extremely hot or cold climates and the most demanding environmental requirements.

The Model 592 has 2″ (51 mm) thick, extra heavy-duty sections that are available in standard sizes up to 40’2″ and 32’1″ (12,243 mm and 9,779 mm) to fit the broadest range of applications.

Overview
Documents

Construction

Product Specifications
Standard Max Width	40’2″ (12,243 mm)
Standard Max Height	32’1″ (9,779 mm)
Panel thickness	2″ (51 mm)
U-factor*	.10
R-value**	17.5 (3.09 W/m2)
Sound Transmission Class 20	Ideal for applications that require sound control
Air infiltration	at 25 mph (40 kmp/h) .13 cfm/ft² (2.37 m³/hr/m²)
Thermal break	PVC
Exterior Steel	.015″ (.38 mm) galv.
Exterior Surface	Ribbed, textured
Standard Springs	10,000 cycles
Wind Load	Designs available for usage in high-wind conditions

_{*U-factor values are independently tested and verified per ANSI/DASMA 105.}
_{**Overhead Door uses a calculated door section R-value for our insulated doors.}

Warranty

10 year limited delamination
1 year limited on door
3 year/20,000 cycle limited on door & operator system (when purchased together; on material and workmanship)
20 year limited on high performance fluoropolymer coating option
