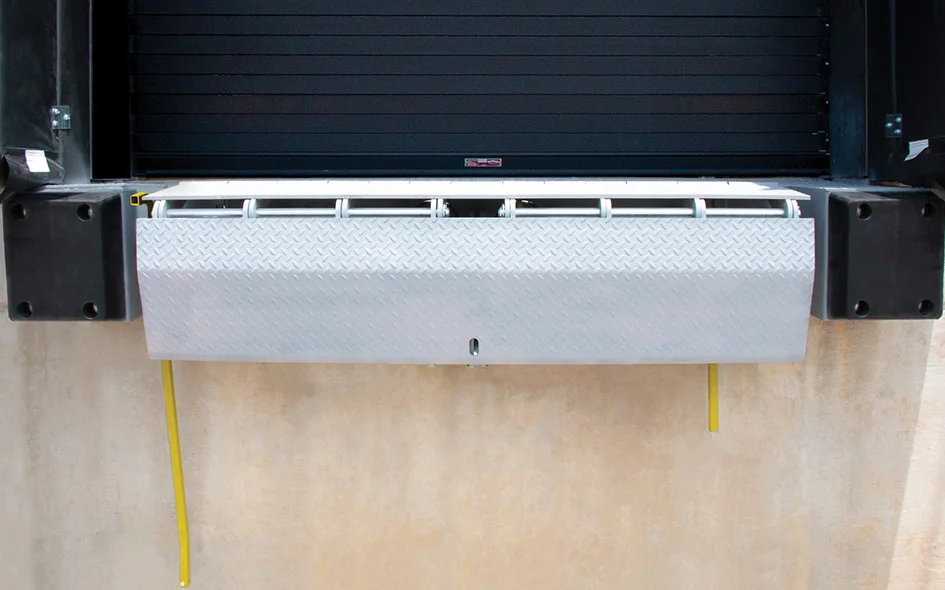

Edge of dock leveler made of heavy-duty steel, featuring a diamond plate surface, installed at a loading dock for efficient and safe transitions between trucks and buildings.

Edge of Dock Leveler - Mounting Options

The Edge of Dock Leveler offers seamless functionality, engineered to optimize your dock’s performance. Paired with the right mounting option, it ensures smooth transitions, reinforced stability, and long-term reliability—no matter the working environment. From reducing downtime to improving safety, our mounting solutions elevate your operation’s efficiency.

Whether you need smooth building-to-truck transitions, stable vertical mounting, or easy concrete integration, we have a solution for you.

Overview
Documents

Specifications

Mounting Options – Approach Plates, Formed Angles, Wall Plates, Channel Embeds
Material – Heavy-duty steel with powder coat finish
Finish – Textured powder coat for enhanced traction and corrosion protection
Environmental Compliance – U.S. EPA recommended eco-friendly coating process
Color Options – Matches Edge of Dock Levelers
Installation – Properly holed for anchoring, easy and fast setup
Load Capacity – Rated for heavy-duty, high-traffic applications in demanding environments

Approach Plates

Smooth Transitions – Ideal for creating a continuous path between trailers and the building, enhancing safety and efficiency.

Protect workers and materials by reducing impact during loading/unloading.

Edge of dock leveler approach plate with textured surface for enhanced traction, designed for heavy-duty applications, featuring a kink for smooth transitions between trailers and buildings.

APPROACH PLATE WITH KINK	PART #
12″ x 120″	851068.12120
18″ x 120″	851068.18120
24″ x 120″	851068.24120
12″ x 106″	851068.12106
18″ x 106″	851068.18106
24″ x 106″	851068.24106
12″ x 100″	851068.12100
18″ x 100″	851068.18100
24″ x 100″	851068.24100

Approach plate with bevel design, featuring a smooth surface and pre-drilled holes for easy installation, suitable for edge of dock levelers in heavy-duty applications.

APPROACH PLATE WITH BEVEL	PART #
12″ x 120″	851063.12120
18″ x 120″	851063.18120
24″ x 120″	851063.24120
12″ x 106″	851063.12106
18″ x 106″	851063.18106
24″ x 106″	851063.24106
12″ x 100″	851063.12100
18″ x 100″	851063.18100
24″ x 100″	851063.24100

Wall Plates

Secure Vertical Mounting – Best for installations where vertical mounting is needed for maximum steadiness.

Ensure superior alignment and long-lasting support.

Edge of dock leveler wall plate for secure vertical mounting, featuring multiple pre-drilled holes for installation stability.

WALL PLATE	PART #
13″ x 100″	851064.13100
13″ x 106″	851064.13106
13″ x 120″	851064.13120
16″ x 100″	851064.16100
16″ x 106″	851064.16106
16″ x 120″	851064.16120

Formed Angles

Enhanced Stability – Reinforced structural integrity perfect for areas with high traffic and heavy load demands.

Extend leveler performance in demanding environments and harsh conditions.

Formed angle with kink designed for secure vertical mounting, enhancing stability and structural integrity for edge of dock levelers.

FORMED ANGLE WITH KINK	PART #
12″ x 13″ x 120″	851067.1213
16″ x 16″ x 120″	851067.1616
20″ x 20″ x 120″	851067.2020
24″ x 24″ x 120″	851067.2424

Formed angle with bevel for edge of dock levelers, designed for vertical mounting, offering enhanced stability and structural integrity in high traffic areas.

FORMED ANGLE WITH BEVEL	PART #
12″ x 13″ x 120″	851062.1213
16″ x 16″ x 120″	851062.1616
20″ x 20″ x 120″	851062.2020
24″ x 24″ x 120″	851062.2424

Channel Embeds

Seamless Concrete Integration – Ideal for new builds or dock retrofits for a durable foundation.

Integrate directly into concrete surfaces for a stable, secure dock system.

Edge of dock mounting channel for seamless concrete integration, designed for high traffic and heavy load demands, featuring multiple embedded connections for stability.

CHANNEL EMBED	PART #
8″ x 100″	851061.08100
8″ x 106″	851061.08106
8″ x 120″	851061.08120
10″ x 100″	851061.10100
10″ x 106″	851061.10106
10″ x 120″	851061.10120

Product Literature

Edge of Dock Mounting Options (opens in a new window)
