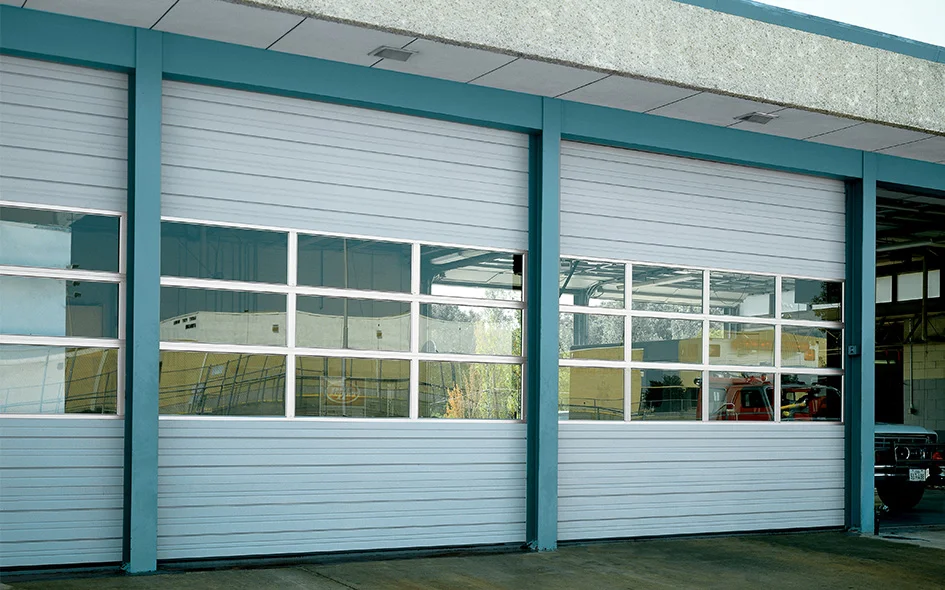

Sectional Steel Door Model 430
Model 430
Sectional steel door model 430 is available in sizes up to 20´2″ (6147 mm) in width and 16´1″ (4902 mm) in height for a variety of medium-duty applications. These doors feature a 2″ (51 mm) panel thickness and a nominal 24-gauge, ribbed, white galvanized steel exterior with 16-gauge steel intermediate and end stiles (Industrial Brown exterior is available). The Model 430 is customizable to any project specification with a variety of additionally available options.
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 20’2″ (6147 mm) |
| Standard Max Height | 16’1″ (4902 mm) |
| Nominal thickness | 2″ (51 mm) |
| Exterior steel | 24-gauge galvanized steel |
| Exterior surface | Ribbed |
| End stiles | 16-gauge steel |
| Center stiles | 16-gauge steel |
| Standard mounting | Angle mount |
| Standard track | 2″ (51 mm) |
| Standard springs | 10,000 cycle |
| Weather Stripping | Flexible PVC bottom with retainer |
| Operation | Manual pull rope or electric operator |
| Finish | White baked on-polyester |
| Lock | Interior mounted slide lock |
| Wind Load | FBC approved wind load options available |
Warranty
- 1-year limited
