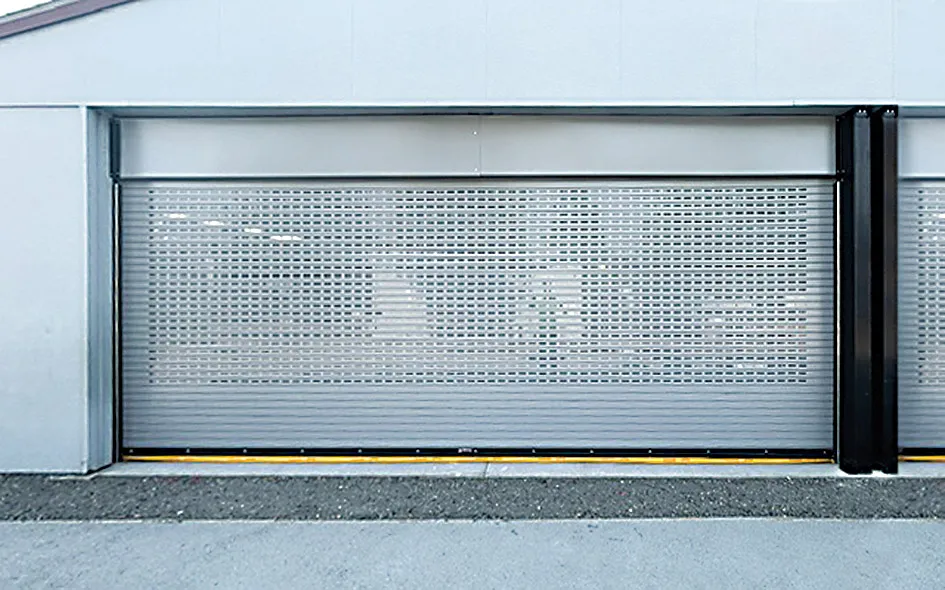

Rolling steel service door model 610 with a perforated curtain design, showcasing its sturdy construction and suitability for commercial applications.

Rolling steel service doors model 610 in a commercial setting, featuring a galvanized steel curtain and yellow safety posts.

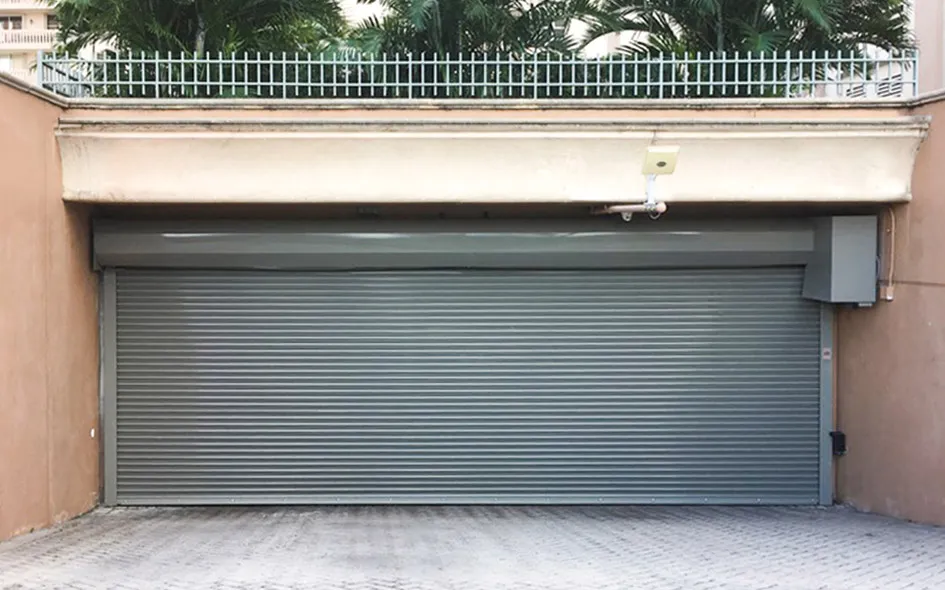

Rolling steel service door model 610 with a gray powder coat finish, installed in a commercial setting, featuring a sleek design and secure operation.

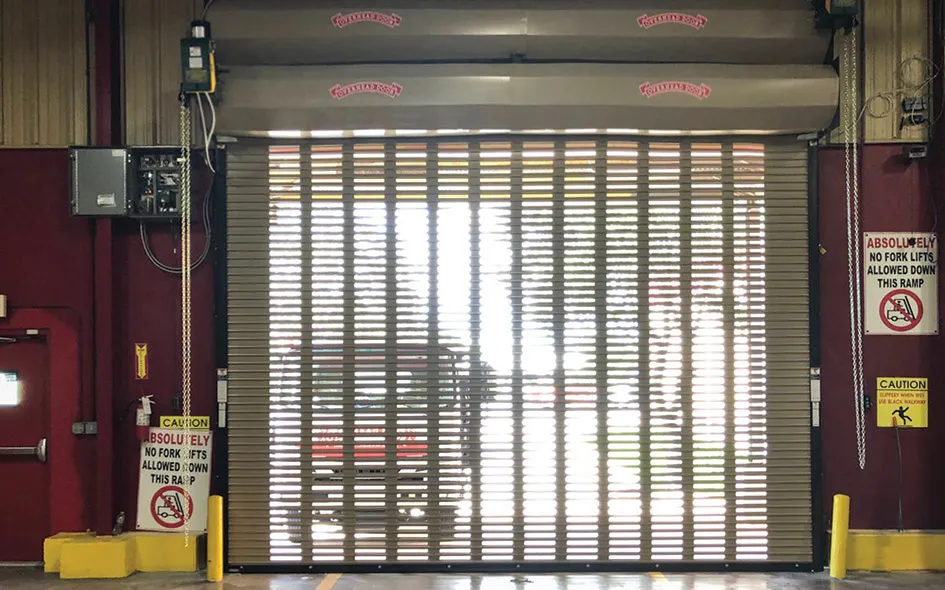

Rolling steel service door model 610 in a commercial setting, featuring a tan finish and safety signage, illustrating durability and security options.

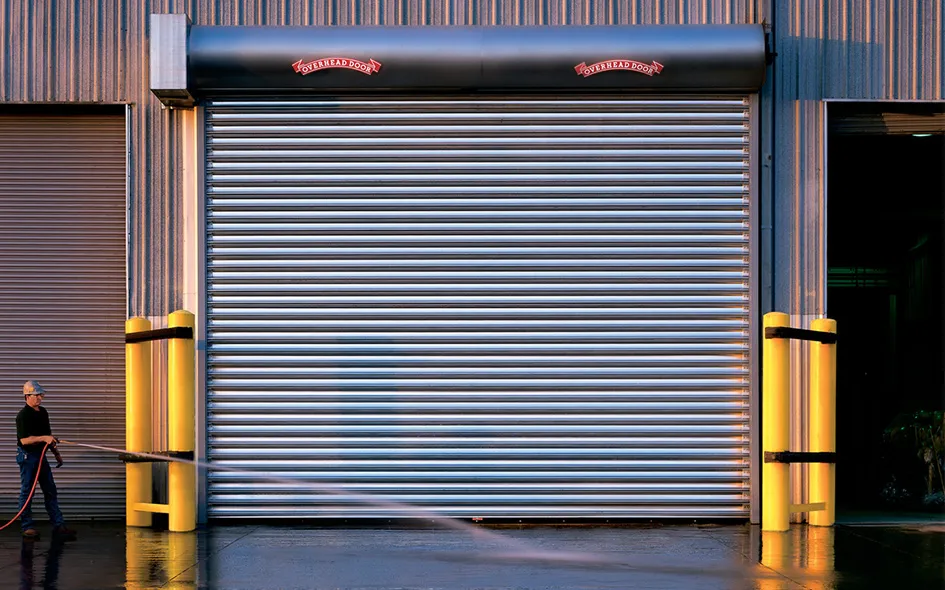

Rolling steel service door model 610 with galvanized steel curtain and Overhead Door branding, featuring a worker using a hose for maintenance in a commercial setting.

Rolling steel service doors model 610 in commercial setting with overhead hoist and industrial environment.

Rolling Steel Service Doors - 610

Model 610

Rolling steel door model 610 is a perennial best-seller for good reason. The standard features exceed the norm for quality and a myriad of options allow for true customization. The Model 610 is built with a standard galvanized steel curtain, or an optional stainless steel or aluminum curtain. The standard curtain slat is the attractive C-187 curved profile, with additional slat options available in curved and flat. Finishes range from four standard colors to approximately 200 powder coat colors or matched to your specification. A host of other options — including motor operation, pass doors, exhaust ports, between-jambs mounting, cylinder locks and special usage packages — allow the 610 to be adapted to any environment.

Security and Storm Shelter Model 610F is a specialized option designed for storm shelters, schools and emergency operations centers. Model 610F provides tornado resistance while meeting the high wind load and impact requirements for FEMA 361.

Overview
Documents

Construction

Product Specifications
Standard Max Width	30’4″ (9246 mm)
Standard Max Height	28’4″ (8636 mm)
Curtain	16 ga. galvanized steel up to 30’4″ (9246 mm) width (F-265 only) 18 ga. galvanized steel up to 30’4″ (9246 mm) width* 20 ga. galvanized steel up to 25’4″ (7722 mm) width* 22 ga. galvanized steel up to 18’4″ (5588 mm) width* 24 ga. galvanized steel up to 15’4″ (4674 mm) width* * not all slat profiles
Finish	Gray, tan, white or brown
Hood	24 ga. galvanized steel
Wind load	20 psf
Standard mounting	Face of wall
Operation	Manual push-up up to 84 sq. ft. (7804 sq.mm) or 12′ x 7′ (3658 mm x 2134 mm) Chain hoist over 84 sq. ft. (7804 sq.mm) or 12′ x 7′ (3658 mm x 2134 mm)
Standard springs	20,000 cycle
Weatherseals	Bottom bar astragal
Guides	Three structural steel angles PowderGuard® weathered finish with black powder coat
Bottom bar	Extruded aluminum with weatherseal up to 15’4″ (4674 mm) Back-to-back steel angles with weatherseal more than 15’4″ (>4674 mm)
Lock	Interior slide bolt on push-up Padlockable chain keeper on chain hoist
