Rolling Steel Service Door - EverServe® 620S
Model 620S

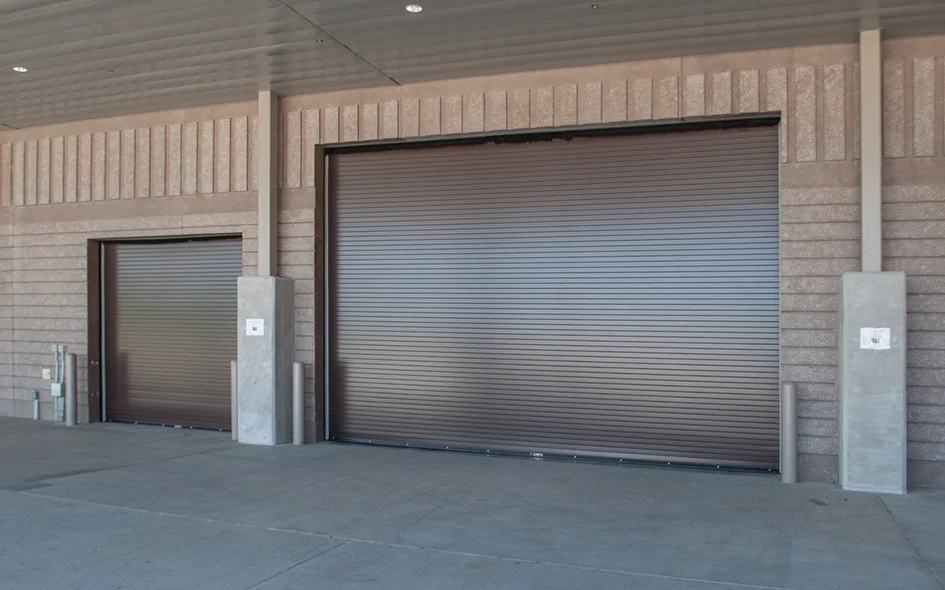

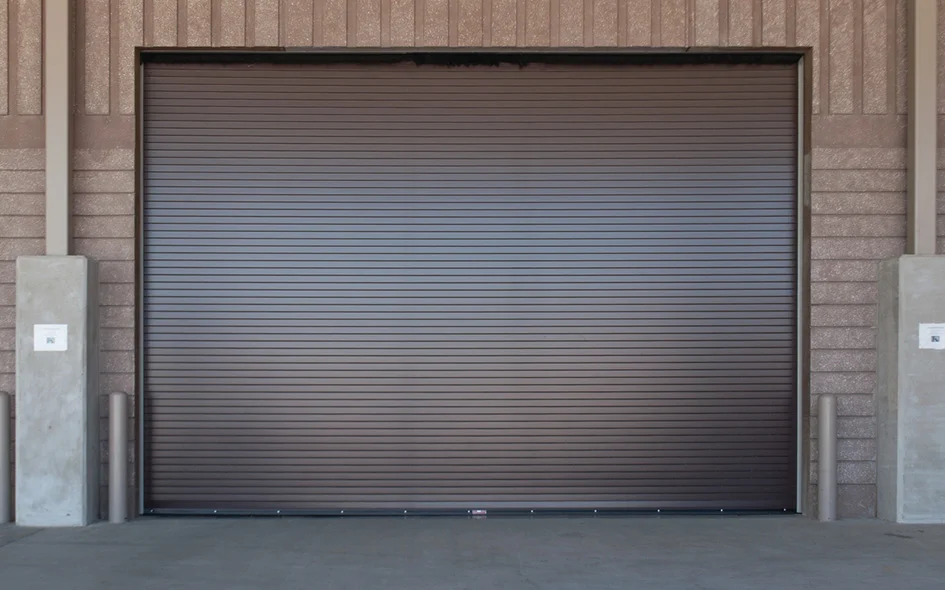

EverServe® Model 620S
This heavy duty Stormtite™ springless service door is best suited for exterior applications that are exposed to harsh weather. The Model 620S provides security, reliability, ease of serviceability and advanced weather protection. The perimeter seals included in this design help protect against extreme weather conditions.
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | up to 30′ (9246 mm) depending on gauge and slat type |
| Standard Max Height | up to 20′ (6096 mm) depending on gauge and slat type |
| Mounting | Interior or exterior face of wall |
| Control panel | Electronic controller with microprocessor self-diagnostics. Digital readout indicates door action, alarm conditions, and fault conditions. Time delay self-close timer and non-resettable cycle counter are included. One open/close/stop push button station integrated into the control panel. The enclosure is IP54 rated (NEMA 3 equivalent). |
| Curtain | Galvanized steel interlocking roll-formed slats, end locks attached to prevent lateral movement. Flat Profile type F-265 for doors up to 18’4″ wide – 22 gauge; From 18’5″ to 25’4″ – 20 gauge; From 25’5″ to 30’0″ – 18 gauge |
| Curtain finish | Gray, Tan, White or Brown polyester topcoat |
| Bottom bar | Two PowderGuard® Premium powder-coated black angles (min. thickness 3/16”) with weatherstrip |
| Hood | 24-gauge galvanized steel primed; motor and end cover provided |
| Brackets | Min. ¼” hot rolled primed, PowderGuard® Premium powder-coated black steel |
| Guides | Three structural steel angles PowderGuard® Premium powder-coated black; With high cycle UHMW wear strip |
| Stormtite™ perimeter seal system | Exterior guide seal, interior hood baffle, bottom astragal |
| Door roll | Direct driven, springless roll with integrated shafts; self-aligning grease-able sealed bearings; the door does not require counterbalance device |
| Safety devices | The built-in brake mechanism provides additional peace-of-mind against uncontrolled curtain travel. Photoelectric safety sensors with guards – provide obstruction monitoring during door operation to help prevent injury and damage |
| Operation | Direct drive integrated gear/motor/brake assembly; Drive assembly and limit sensors are factory pre-assembled; Manual hand chain for a power outage. Horsepower appropriate to door size/weight; 230V AC 3-phase motor |
| Actuator | Single open/close/stop push button station incorporated into the control panel |
| Wind load | 20 psf |
Warranty
- 36 month limited warranty coverage on the door system
