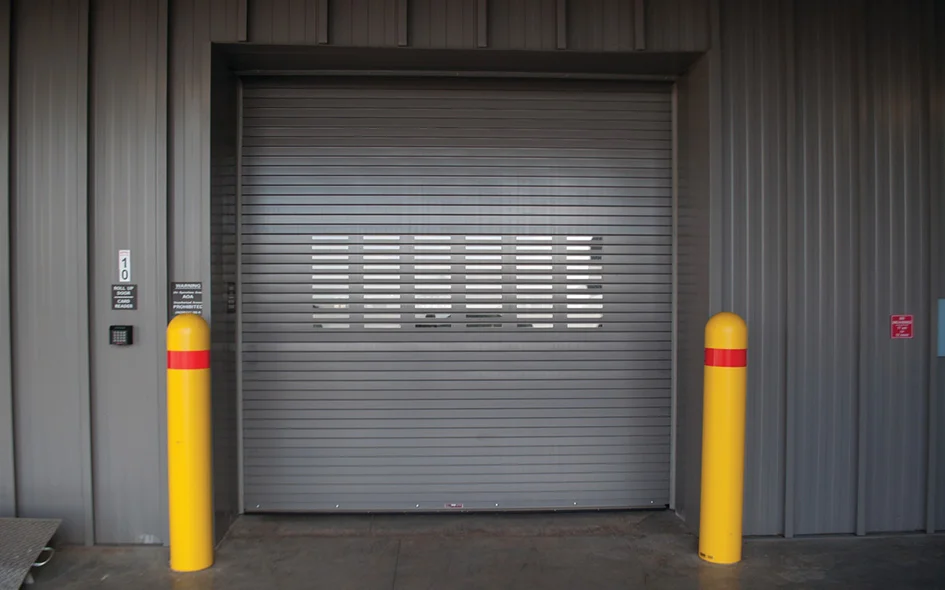

Rolling Steel Service Door - 625S
Model 625S
EverServe® Model 625S
This heavy duty Stormtite™ insulated springless service door delivers security, reliability and ease of serviceability and is best suited for applications that require protection against weather extremes. The insulated slats provide climate control as well as sound reduction, while perimeter seals provide additional protection from weather.
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | up to 30′ (9246 mm) depending on gauge and slat type |
| Standard Max Height | up to 20′ (6096 mm) depending on gauge and slat type |
| Mounting | Interior or exterior face of wall |
| Control panel | Electronic controller with microprocessor self-diagnostics. Digital readout indicates door action, alarm conditions, and fault conditions. Time delay self-close timer and non-resettable cycle counter is included. One open/close/stop push button station integrated in control panel. Enclosure is IP54 rated (NEMA 3 equivalent). |
| Curtain | Galvanized steel interlocking roll-formed slats, end locks attached to prevent lateral movement; Insulated flat profile (F-265i) for doors up to 30′ wide – front and back slats 24 gauge. Slat cavity shall be filled with CFC-free, foamed in-place, polyurethane insulation |
| Curtain finish | Gray, Tan, White or Brown polyester top coat |
| Bottom bar | Two PowderGuard® Premium powder coated black angles (min. thickness 3/16”) with weatherstrip |
| Hood | 24-gauge galvanized steel primed; motor and end cover provided |
| Brackets | Min. ¼” hot rolled primed, PowderGuard® Premium powder coated black steel |
| Insulation | R-value* of 7.71 for energy-efficiency. U-value of .13 and STC rating of 21 |
| Guides | Bottom, exterior curtain-side guide, interior hood baffle |
| Guides | Three structural steel angles PowderGuard® Premium powder coated black; With high cycle UHMW wear strip |
| Door roll | Direct driven, springless roll with integrated shafts; self-aligning grease-able sealed bearings; door does not require counterbalance device |
| Stormtite™ perimeter seal system | Exterior guide seal, interior hood baffle, bottom astragal |
| Safety devices | Built-in braking mechanism provides additional peace-of-mind against uncontrolled curtain travel. Photoelectric safety sensors with guards – provide obstruction monitoring during door operation to help prevent injury and damage |
| Operation | Direct drive integrated gear/motor/brake assembly; Drive assembly and limit sensors are factory pre-assembled; Manual hand chain for power outage. Horsepower appropriate to door size/weight; 230V AC 3-phase motor |
| Actuator | Single open/close/stop push button station incorporated into control panel |
| Wind load | 20 psf |
Warranty
- 36 month limited warranty coverage on door system
