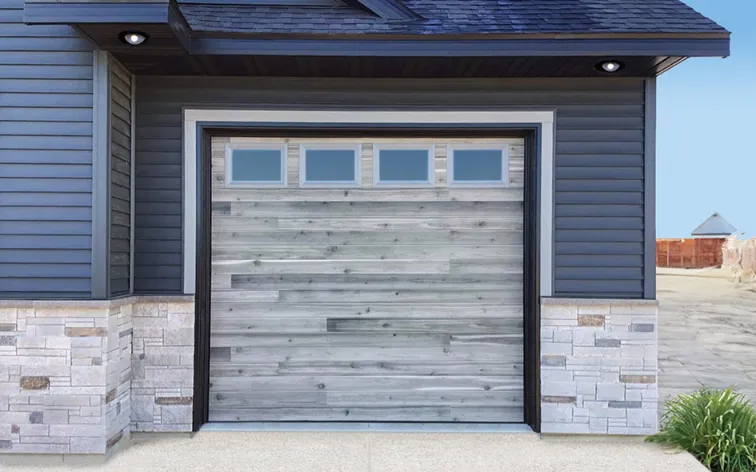

model-195-thermacore-beachwood-plank-clear-short-windows-2

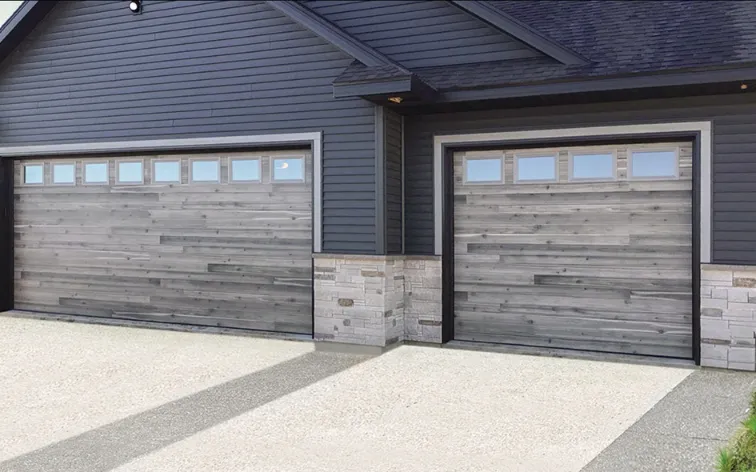

model-195-thermacore-beachwood-plank-clear-short-windows-3

model-195-thermacore-medium-oak-clear-long-vertical-windows

model-195-thermacore-medium-oak-clear-long-windows

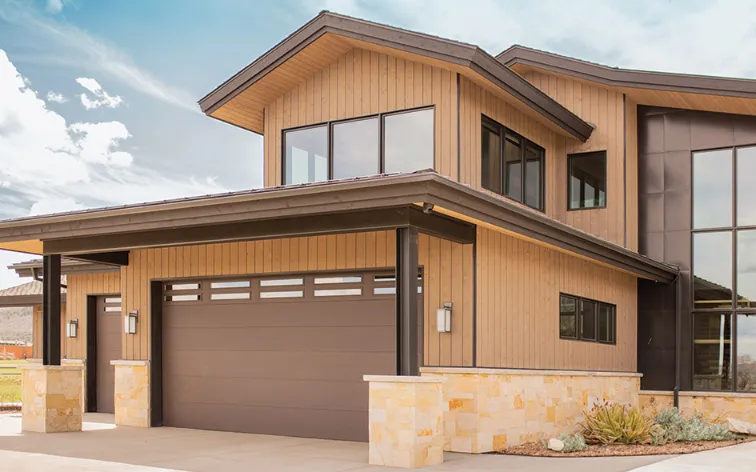

model-195-thermacore-series-flush-panel-dark-bronze-lites

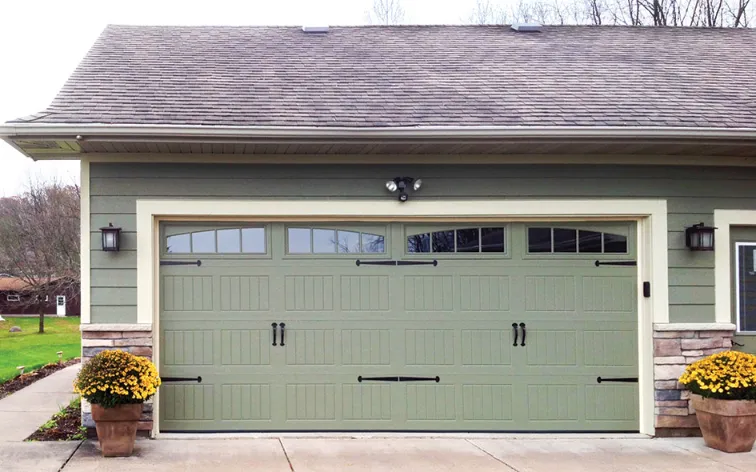

model-199-thermacore-v5-custom-paint-stockbridge-windows

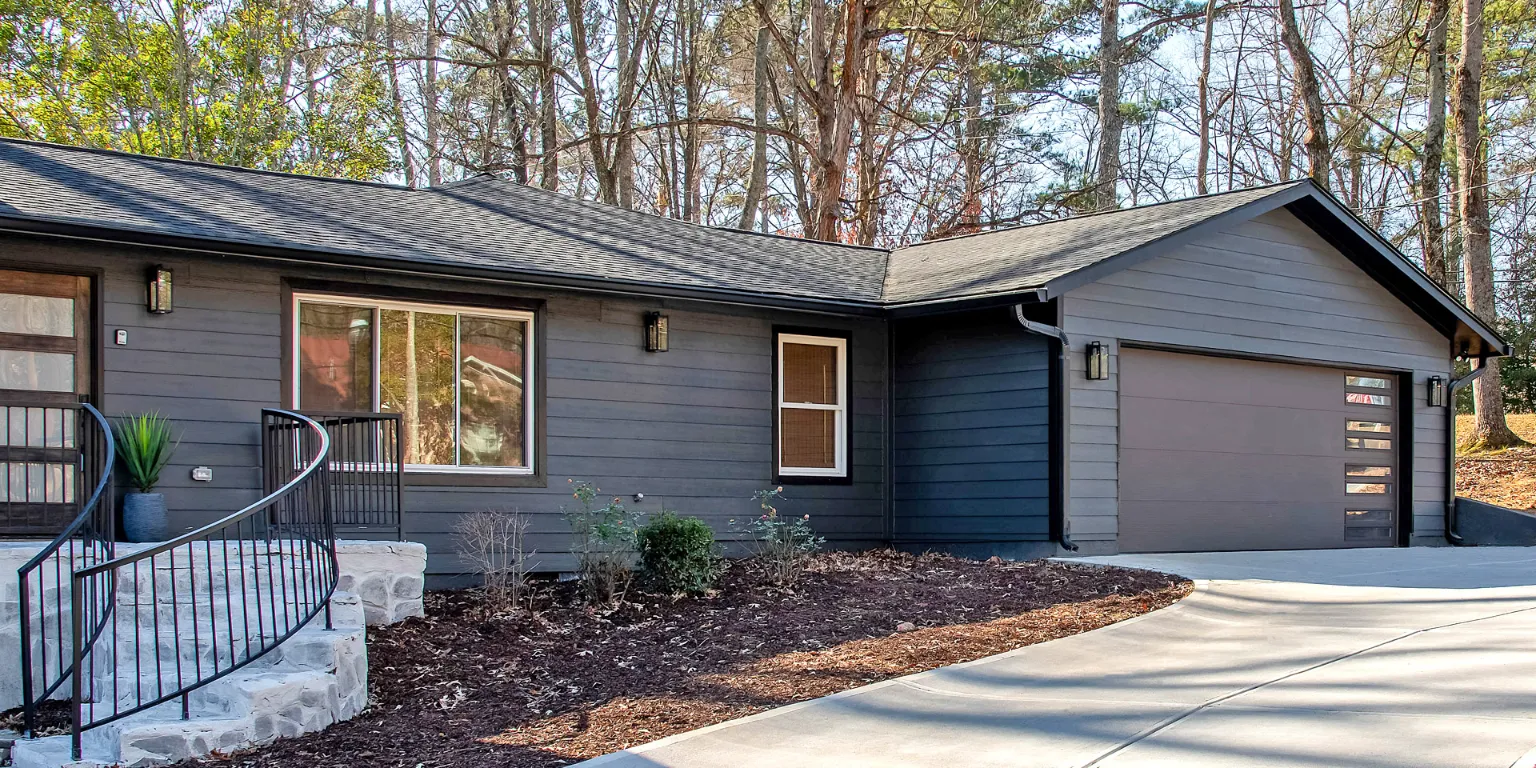

o-rd-thermacore-model-5740-microgroove-panel-dark-bronze-double-narrow-windows_1920x960

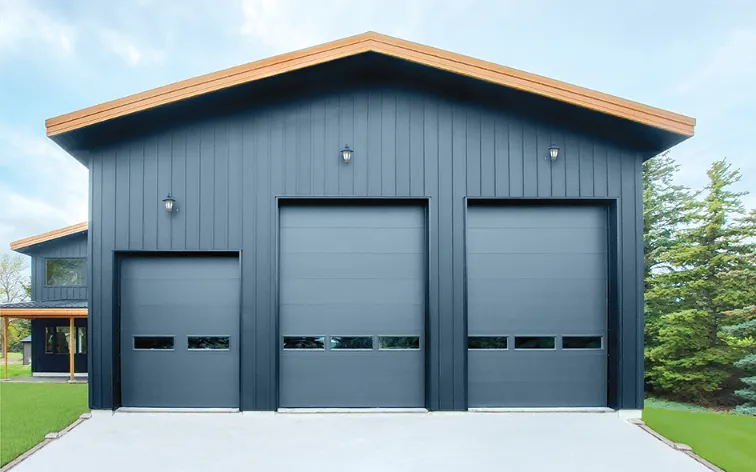

thermacore-5740-black-frost-flush-panel-clear-long-web

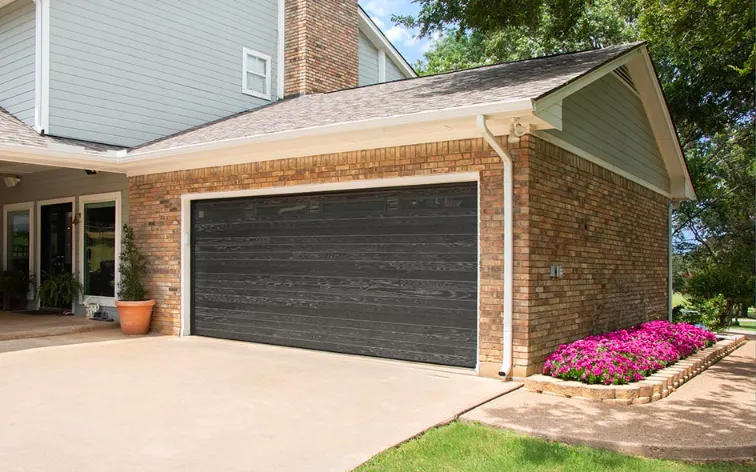

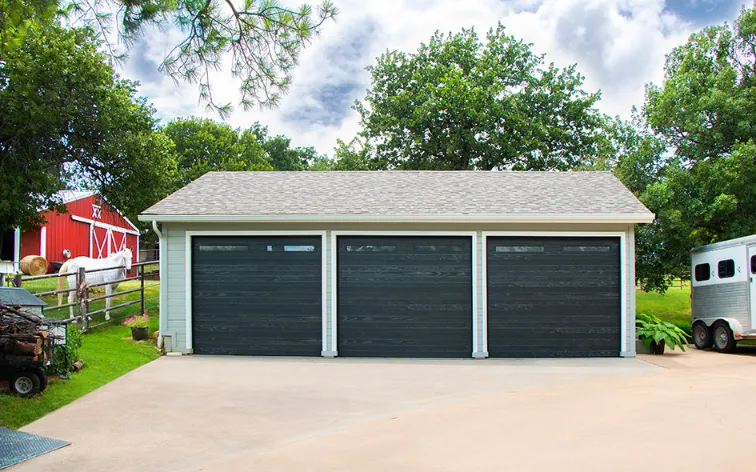

thermacore-5740-black-plank-narrow-windows-web-8

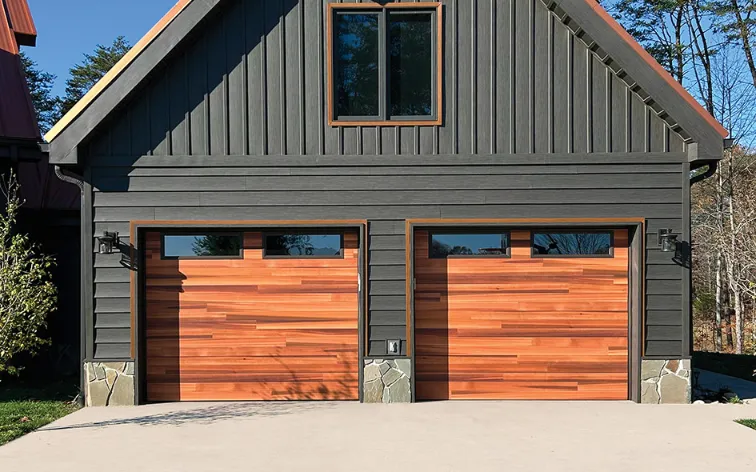

thermacore-5740-cedar-plank-clear-long-1-web

thermacore-5740-cedar-plank-clear-long-2-web

thermacore-dark-bronze-flush-panel-5740-195

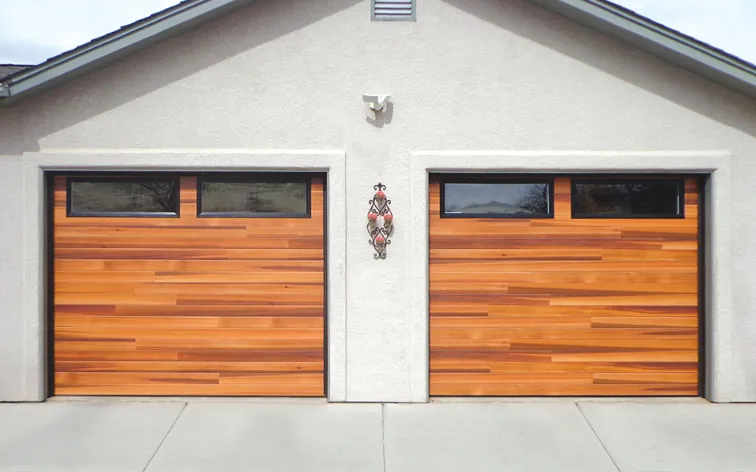

thermacore-flush-5740-(195)-cedar-plank-clear-longad0c668c-524c-4687-b2b6-484fa71daa2a

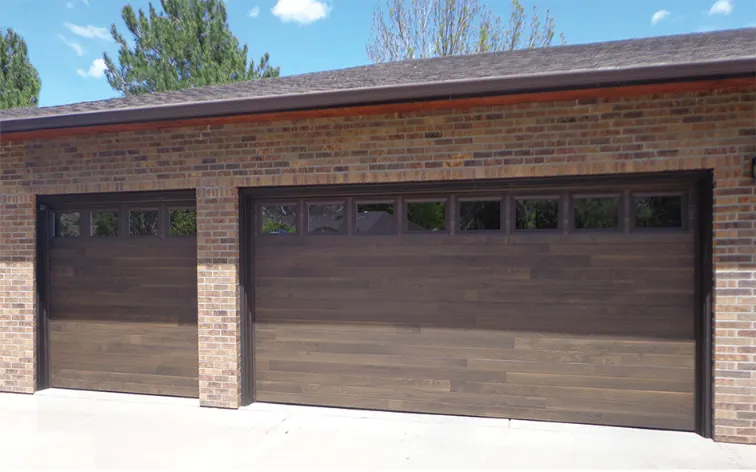

thermacore-flush-5740-(195)-medium-oak-clear-short-1200x650

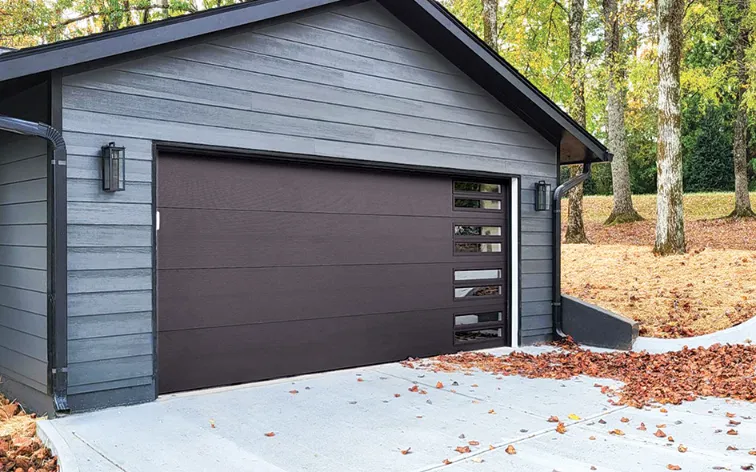

thermacore-microgroove-panel-model-5740-dark-bronze-vertical-narrow-window-945x590-1

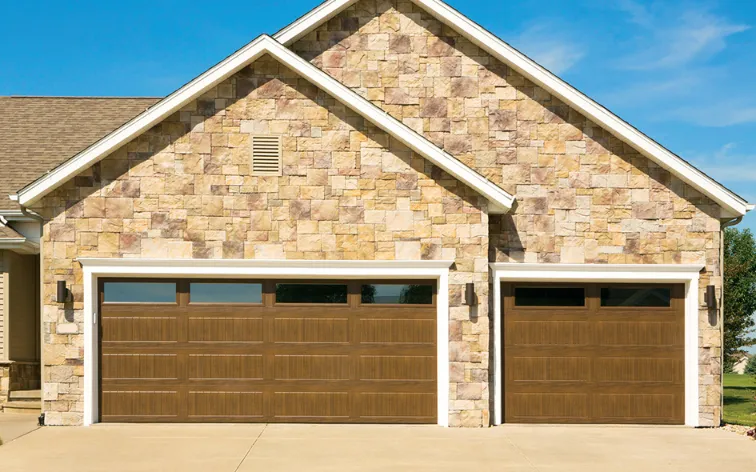

thermacore-mission-oak-vertical-long-5740-192

thermacore-standard-panel-5740-194-walnut

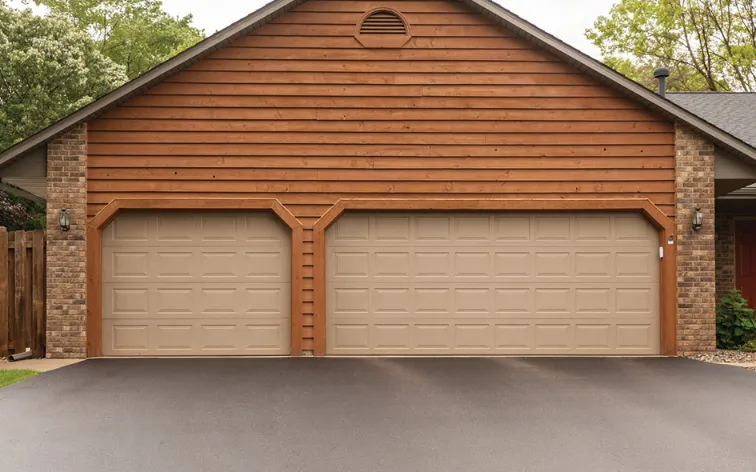

thermacore-terra-bronze-5740-194-standard-panel

thermacore-walnut-vertical-short-5740-199

Insulated Steel Garage Doors

Thermacore® Collection - Models 5720, 5740 & 5760

Thermacore® Collection insulated steel doors are the ideal choice for premium construction and maximum thermal efficiency. This series of doors feature construction of steel-polyurethane-steel as well as between-section seals with thermal breaks to reduce air infiltration. With several panel designs to choose from, these doors offer design flexibility, durability and thermal efficiency that will help keep your home comfortable in cold or hot climates.

Thermacore® Collection premium insulated garage doors deliver maximum thermal efficiency and design flexibility.

Learn more about our new Artisan Wood Grain™ finish options!

Overview
Documents

Product Specifications
5 Panel Options Available	Standard, Flush, Long, Microgroove, Vertical Short and Vertical Long
Thermacore^® Construction	Provides a continuous layer of foamed-in-place, CFC-free polyurethane garage door insulation sandwiched between two layers of corrosion-resistant steel, for maximum thermal efficiency
Polyurethane Garage Door Insulation	Provides thermal efficiency U-factor* of .20 (_{9.31 R-value*}): Model 5720 U-factor of .15 (_{12.76 R-value*}): Model 5740 U-factor of .10 (_{17.5 R-value**}): Model 5760
Multiple Surface Options	Embossed wood grain, microgroove wave pattern and smooth
Steel Backing	For clean, finished interior appearance
Durable Finish	Hot-dipped galvanized steel with two coats of baked-on polyester paint
In-between Section Seals	Seals provide superior resistance to the elements
Bulb-type Bottom Weatherseal	Guards against wind and rain while providing a cushion when closing the door
Wind Load	Our WindStorm™ wind load rated system is available on selected products to meet regulations for a variety of wind speeds, ensuring your door is built to withstand varying wind conditions, including hurricane-force winds, and meet the most stringent local building codes.

_{*U-factor values are independently tested and verified per ANSI/DASMA 105.}
_{**Overhead Door™ Brand uses a calculated door section R-value for our insulated doors.}

Overhead Door^TM Brand participates in the DASMA Thermal Performance Verification Program. The program verifies the thermal performance of sectional doors. The lower the U-factor rating, the better the thermal performance.

Thermal Performance Checkmark ^{Symbol indicates verified U-factor rating in accordance with the DASMA Thermal Performance Verification Program.}
