High Speed Interior Fabric Door - 992
Model 992

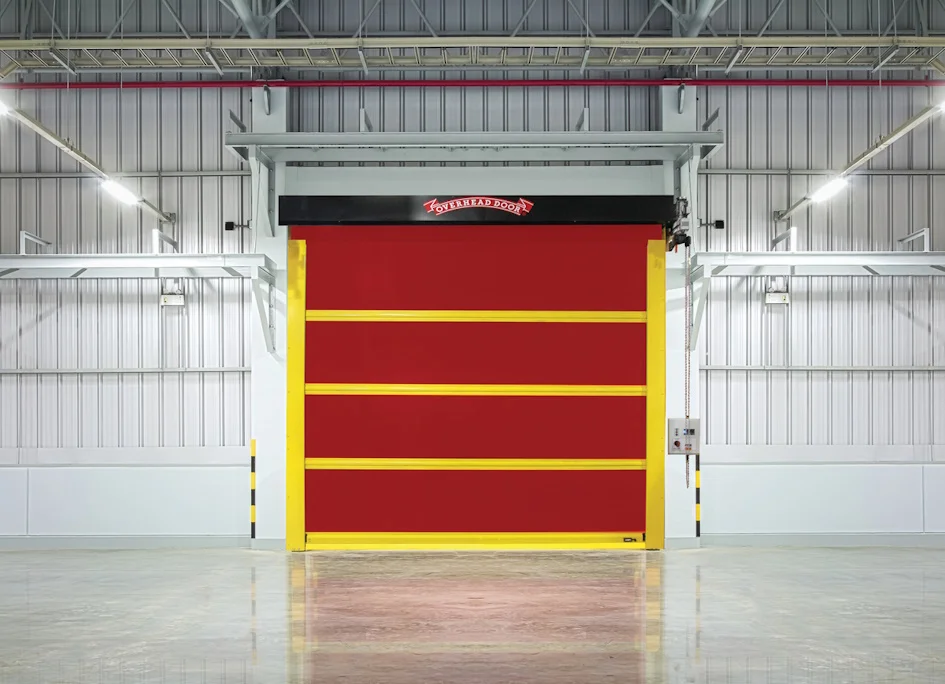

RapidFlex® Model 992 is a strutted, heavy-duty interior/exterior high speed fabric door with independently tested wind load of up to 4.0 psf. Its industry-leading standard safety features include reversing edge, two sets of infrared obstruction detection sensors and door stop device.
Our RapidFlex® Model 992 high speed strutted rolling fabric door is perfect for manufacturing, food and beverage, cold storage, warehouse and distribution facilities.
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 16′ |
| Standard Max Height | 15′ |
| Speed | Up to 65″ per second |
| Break-away Self-reset | Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event |
| Wind Strut | 1″ strut standard |
| Interior Application Curtain Material | 2 layers of PVC coated polyester with 1 layer of polyester weave |
| Operation | Direct drive motor and gearbox system with a door stop device |
| Control | Variable frequency drive , NEMA 4X cULus listed, Onboard self diagnostic and service reminder, Built-in padlockable field disconnect |
| Obstruction Detection | Infrared sensors mounted in-plane to the door curtain at 18″ and 50″-54″ from floor |
| Reversing Safety Edge | Wireless monitored reversing edge |
| Available Supply Voltages** | 208V AC 1PH†, 220V AC 1PH, 208V AC 3PH†, 230V AC 3PH, 460V AC 3PH, 575V AC 3PH† (†requires stand-alone mounted transformer) |
| Wind Load* | Up to 4.0 psf |
**Single phase available up to 10’ doors.
* Pressure/wind resistance value is the ultimate pressure tested at door width of 16′.
Warranty
- 5-year limited
