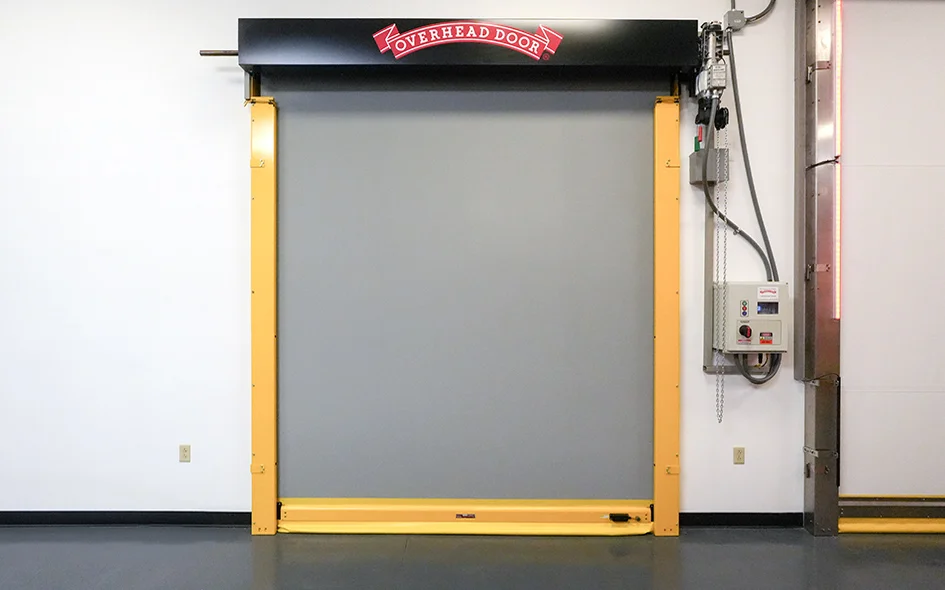

High-speed interior fabric door model 991 by Overhead Door Company, featuring a gray curtain and yellow frame, designed for controlled environments in commercial settings.

High-speed interior fabric door model 991 by Overhead Door Company, featuring a transparent window, electronic controls, and a sleek design for commercial environments.

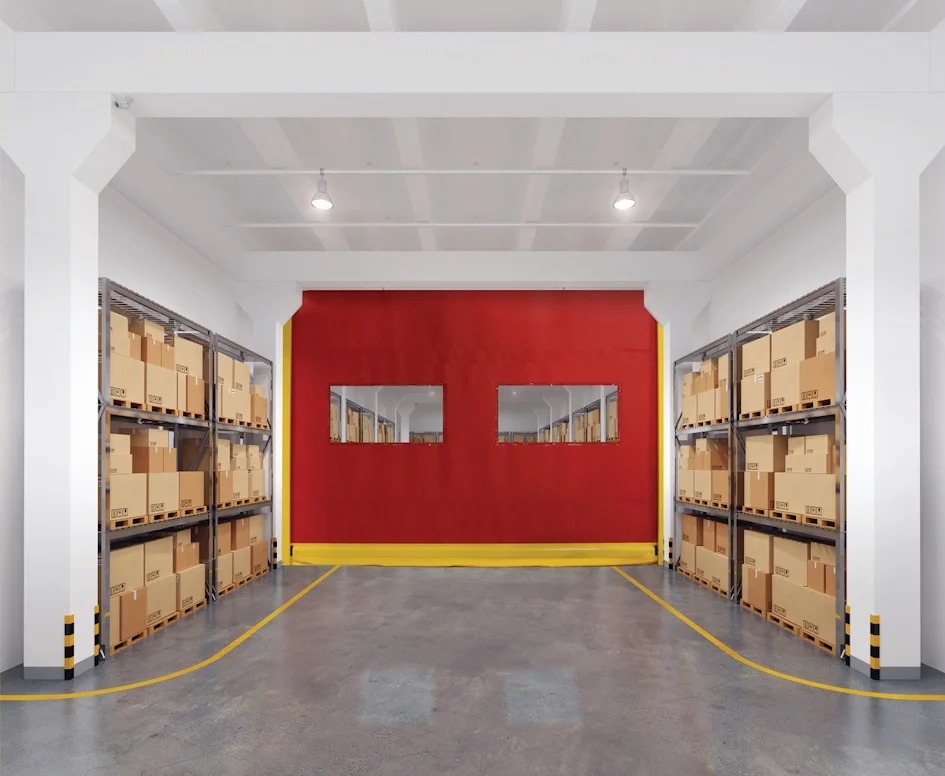

High-speed interior fabric door RapidFlex Model 991 in a warehouse setting, featuring a red wall, dual windows, and stacked boxes on shelves, designed for controlled environments and high traffic areas.

High Speed Interior Fabric Door - 991

Model 991

Our high speed interior fabric door, RapidFlex^® Model 991, is ideal for separating controlled environment spaces such as food and beverage facilities, high traffic zones, storage rooms and manufacturing areas to prevent cross contamination. This door features dual recessed photo eyes and a patent-pending curtain lock which allows the door to withstand pressure and enables it to be repaired quickly in the field.

Perfect for manufacturing, distribution, food / beverage, cold storage and pharmaceutical facilities.

Overview
Documents

Construction

Product Specifications
Standard Max Width	14′
Standard Max Height	14′
Speed	Up to 70″ per second
Certified Air Tightness	< 0.236 cfm/sq. ft.:- independently tested airtight design to prevent airborne contaminants from entering a controlled environment
Curtain Lock	Patent-pending curtain-lock design allows for quick and easy repair in the field
Break-away Self-reset	Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event
Door Panel	2 layers of PVC coated polyester; 1 layer of polyester weave
Vision Option	20” high windows spaced evenly across width of door
Operation	Direct drive motor and gearbox system with a door stop device
Cooler Application	Air curtain options available including heated or non-heated, steel or stainless steel and various voltage offerings
Control Panel	Variable frequency drive NEMA 4X cULus listed Onboard self diagnostic and service reminder Built-in padlockable field disconnect
Obstruction Detection	Infrared sensors mounted in-plane to the door curtain at 18″ and 50″-54″ from floor
Reversing Safety Edge	Wireless monitored reversing edge
Electrical Availability***	120V AC 1PH; 208V AC 1PH^†; 220V AC 1PH; 208V AC 3PH^†; 230V AC 1PH; 230V AC 3PH; 460V AC 3PH; 575V AC 3PH† (^†requires stand-alone mounted transformer)
Wind Load*	Up to 7.5 PSF

_{***Single phase available up to 10’x10′ doors.}

_{* Pressure/wind resistance value is the ultimate pressure tested at door width of 10′.}

Warranty

5-year limited

BIM

RapidFlex High Speed Interior Fabric Door 991 BIM (opens in a new window)

Shop Drawing

Specifications

Product Literature
