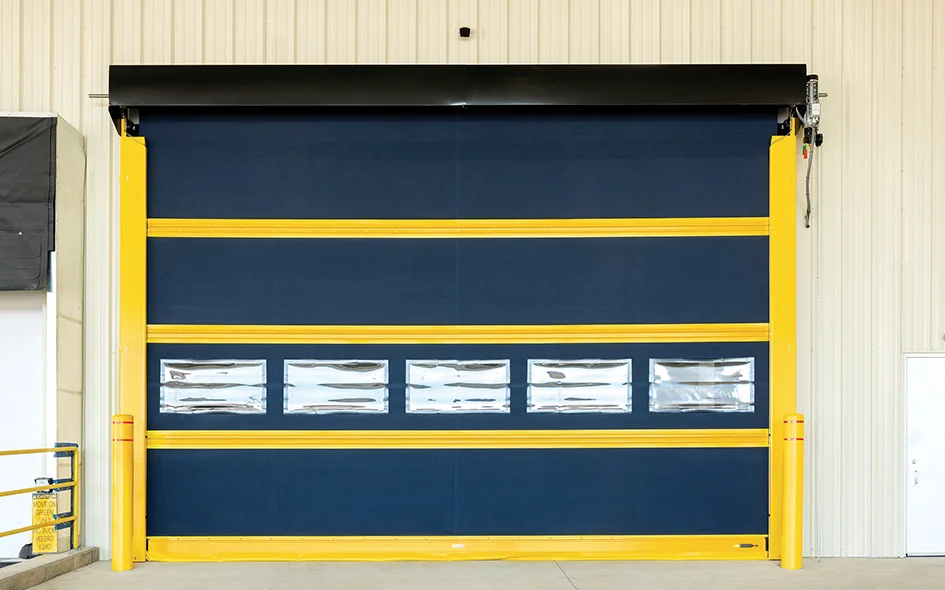

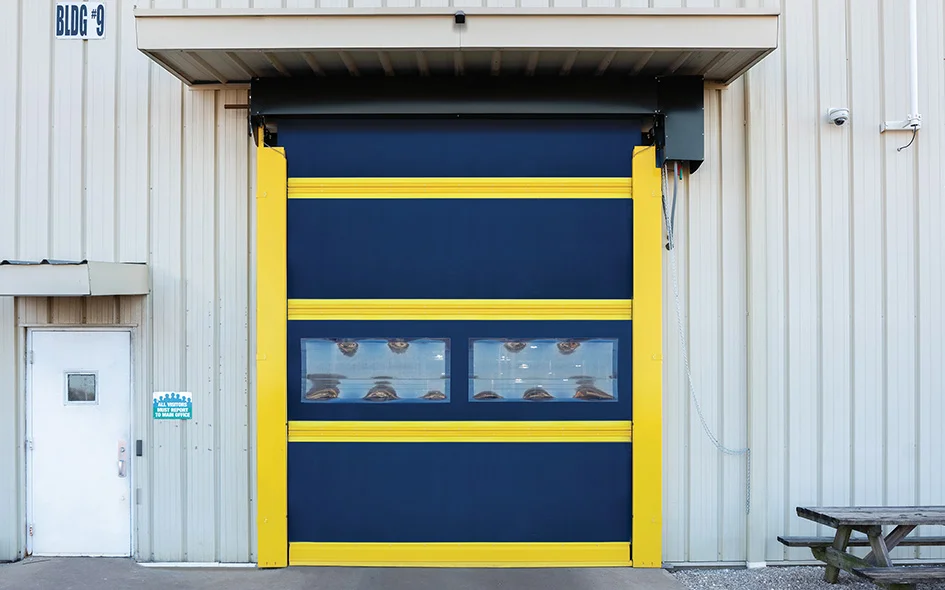

High-speed heavy-duty exterior fabric door with blue and yellow design, featuring transparent windows, suitable for commercial applications like manufacturing and parking garages.

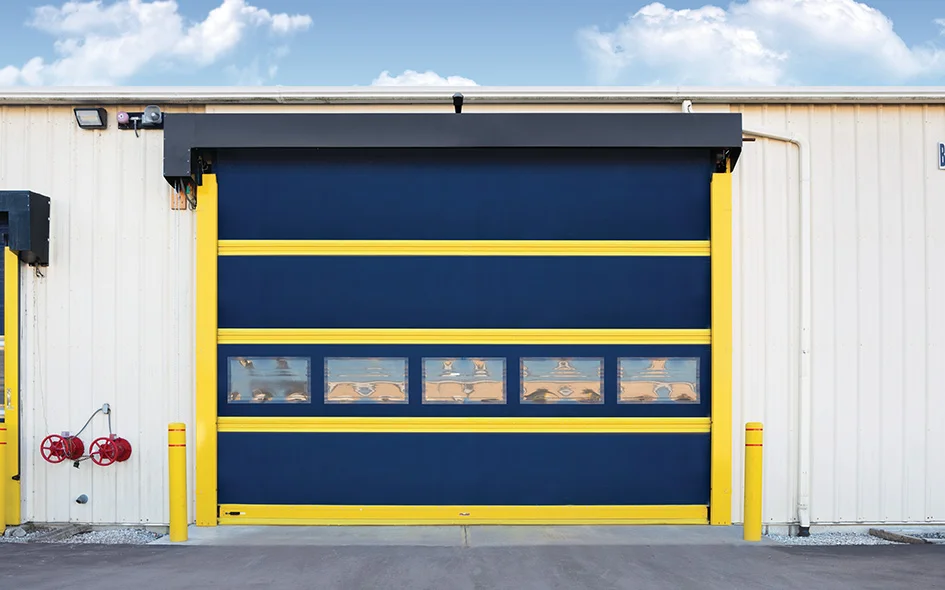

High-speed heavy-duty exterior fabric door with blue and yellow design, featuring windows, installed in a commercial building setting.

High-speed heavy-duty exterior fabric door model 994 with windows, suitable for commercial applications like manufacturing and parking garages.

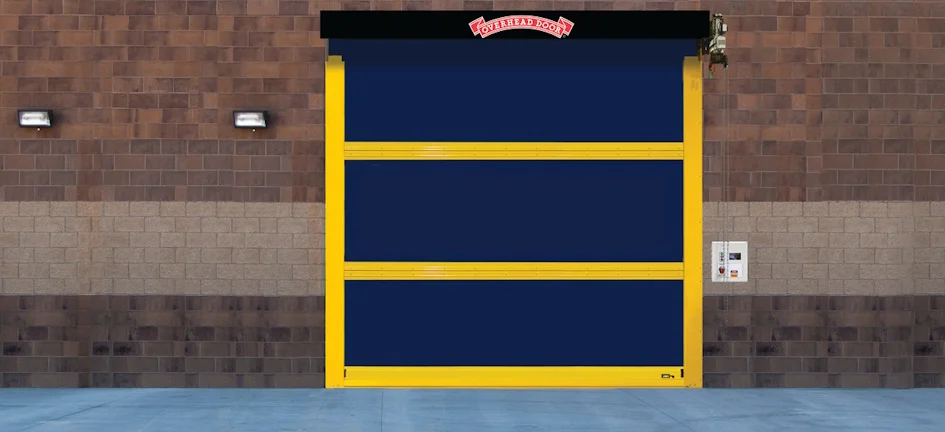

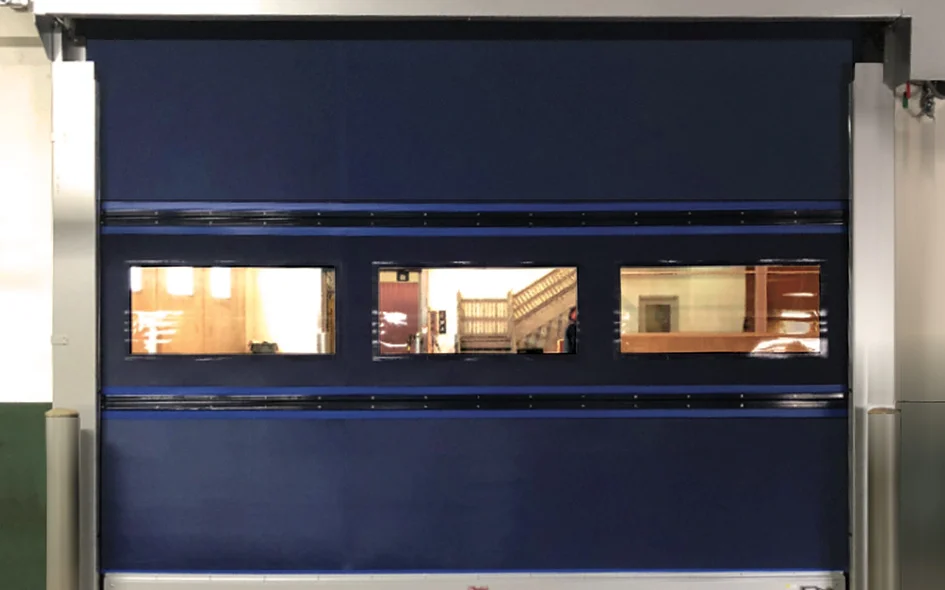

High speed heavy-duty exterior fabric door in navy blue with yellow stripes, featuring windows, suitable for commercial applications like manufacturing and parking garages.

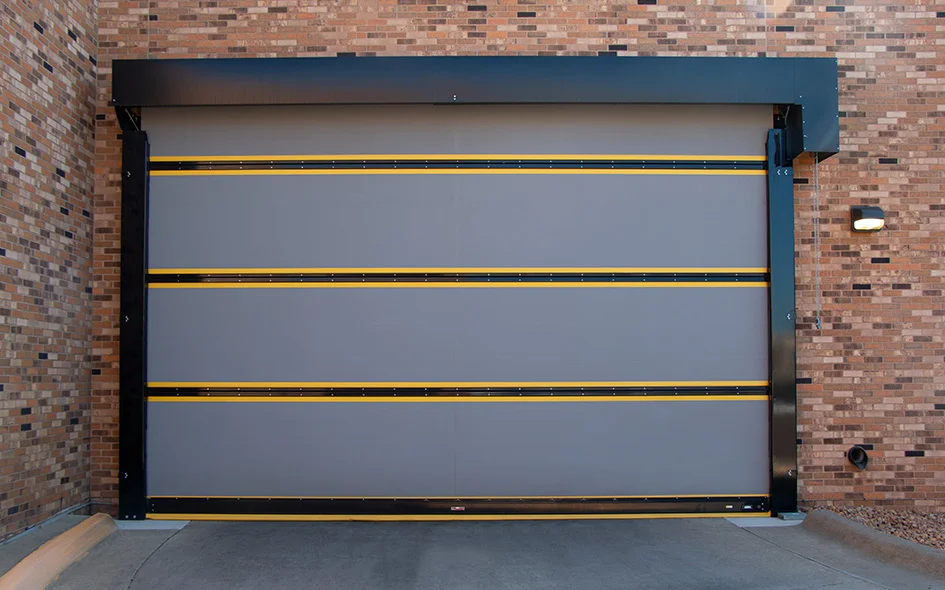

High-speed heavy-duty exterior fabric door, model 994, with gray fabric and yellow safety stripes, installed in a commercial setting against a brick wall.

High-speed heavy-duty exterior fabric doors in grey with yellow accents, designed for large openings, suitable for commercial applications like manufacturing and parking garages.

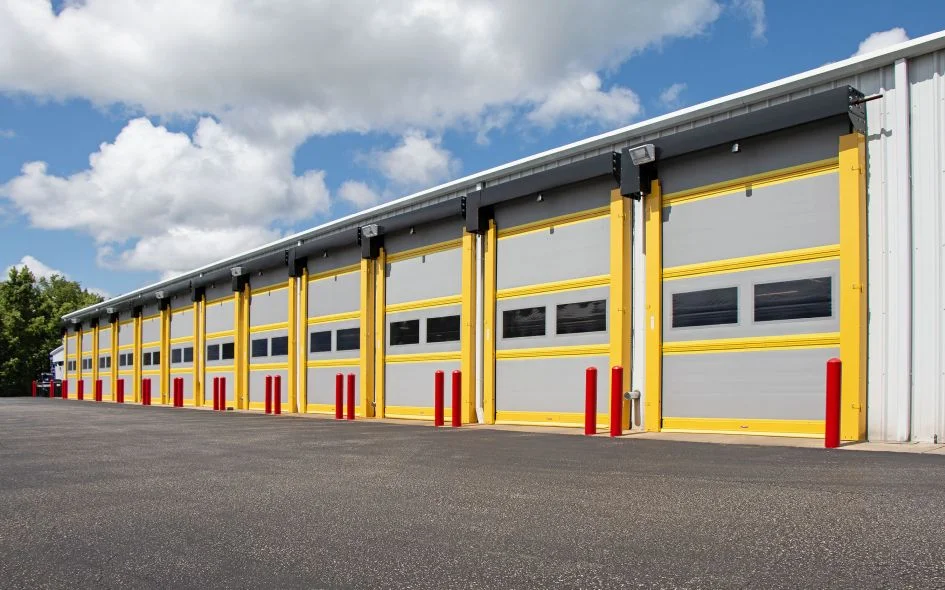

High-speed heavy-duty exterior fabric doors in a commercial setting, featuring gray panels with yellow accents and windows, suitable for manufacturing and parking garage applications.

High Speed Heavy Duty Exterior Fabric Door - RapidFlex Model 994 with yellow accents, set against a textured brick wall, featuring safety sensors and control panel.

High speed heavy-duty exterior fabric door with gray fabric and yellow horizontal stripes, designed for commercial applications like parking garages and manufacturing.

High Speed Heavy Duty Exterior Fabric Door - 994

Model 994

RapidFlex^® Model 994 is a strutted, heavy-duty exterior high speed fabric door that is perfect for large openings and is best suited for manufacturing, mining, auto/transit, and parking garage applications. It features an independently tested wind load of up to 22.0 psf. The RapidFlex^® Model 994 includes industry-leading standard safety features such as reversing edge, two sets of infrared obstruction detection sensors and door stop device.

Our RapidFlex^® Model 994 high speed heavy-duty exterior door is a perfect door solution for parking garages, mining, auto/transit and manufacturing facilities.

Overview
Documents

Construction

Product Specifications
Standard Max Width	24′
Standard Max Height	20′
Speed	Up to 55″ per second
Break-away Self-reset	Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event
Wind Strut	4” articulating roller wind strut
Curtain Material	3 layers of PVC coated polyester; 2 layers of polyester weave.
Vision Option	20” high windows spaced evenly across width of door
Operation	Direct drive motor and gearbox system with a door stop device
Control Panel	Variable frequency drive NEMA 4X cULus listed Onboard self diagnostic and service reminder Built-in padlockable field disconnect
Obstruction Detection	2 sets of infrared sensor mounted proximity to the door path
Reversing Safety Edge	Wireless monitored reversing edge
Electrical Availability	208V AC 3PH†, 230V AC 3PH; 460V AC 3PH; 575V AC 3PH† (†requires stand-alone mounted transformer)
Wind Load*	Up to 22.0 psf

^{* Pressure/wind resistance value is the ultimate pressure tested at door width of 20′.}

Warranty

5-year Limited

BIM

RapidFlex High Speed HD Exterior Fabric Door – Model 994 BIM (opens in a new window)

Shop Drawing

Specifications

Product Literature
