High Speed Exterior Rubber Door - 995

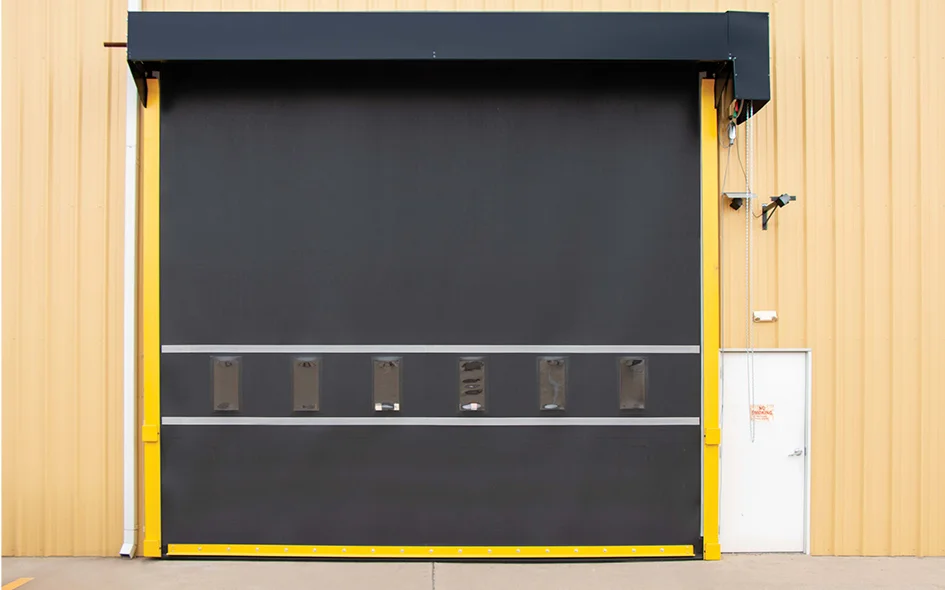

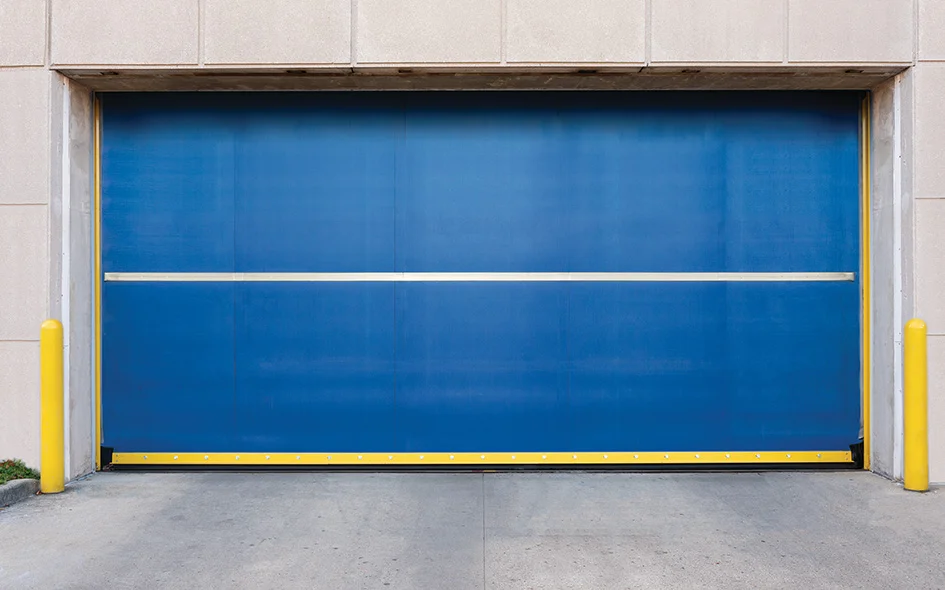

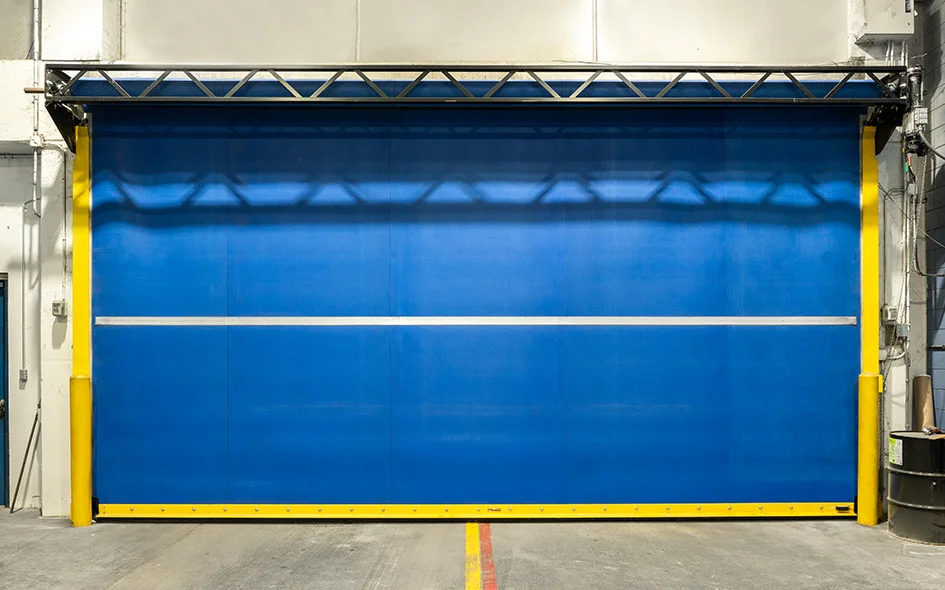

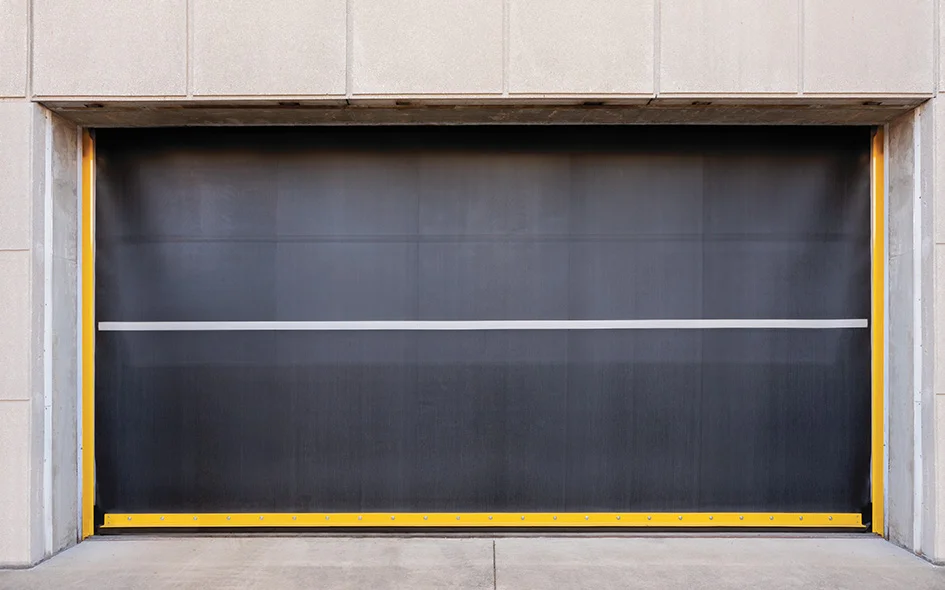

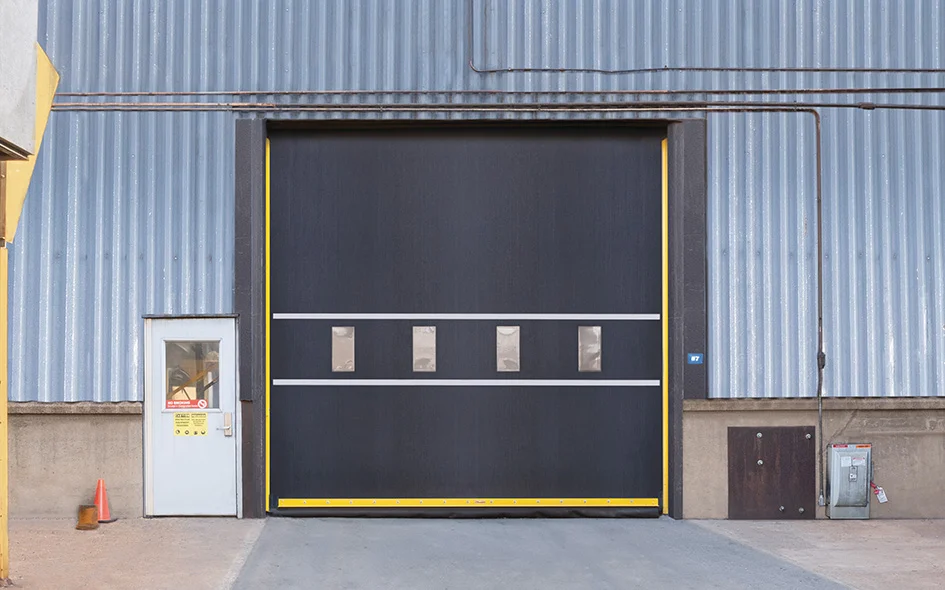

Model 995
RapidFlex® Model 995 is a heavy-duty exterior high speed rubber door that features a multi-reinforced NBR rubber curtain and high strength guide construction to withstand harsh exterior conditions. It features an independently tested wind load of up to 27.0 psf*. The RapidFlex® Model 995 includes industry-leading standard safety features such as reversing edge, two sets of infrared obstruction detection sensors and door stop device. Perfect for parking garages, food/beverage, mining, auto/transit and manufacturing facilities.
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 30′ |
| Standard Max Height | 30′ |
| Speed | Up to 50″ per second |
| Break-away Self-reset | Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event |
| Wind Strut | Not available |
| Curtain Material | 5 layers of NBR rubber; 4 layers of polyester weave |
| Operation | Direct drive motor and gearbox system with a door stop device |
| Control Panel |
|
| Obstruction Detection | 2 sets of infrared sensor mounted proximity to the door path |
| Reversing Safety Edge | Wireless monitored reversing edge |
| Electrical Availability | 208V AC 3PH†, 230V AC 3PH; 460V AC 3PH; 575V AC 3PH† (†requires stand-alone mounted transformer) |
| Wind Load* | Up to 27.0 psf |
* Pressure/wind resistance value is the ultimate pressure tested at door width of 19′.
Warranty
- 5-year Limited
BIM
Shop Drawing
Specifications
Product Literature
