High-speed exterior fabric door model 993 with yellow frame and windows, designed for commercial use in warehouses and distribution facilities.

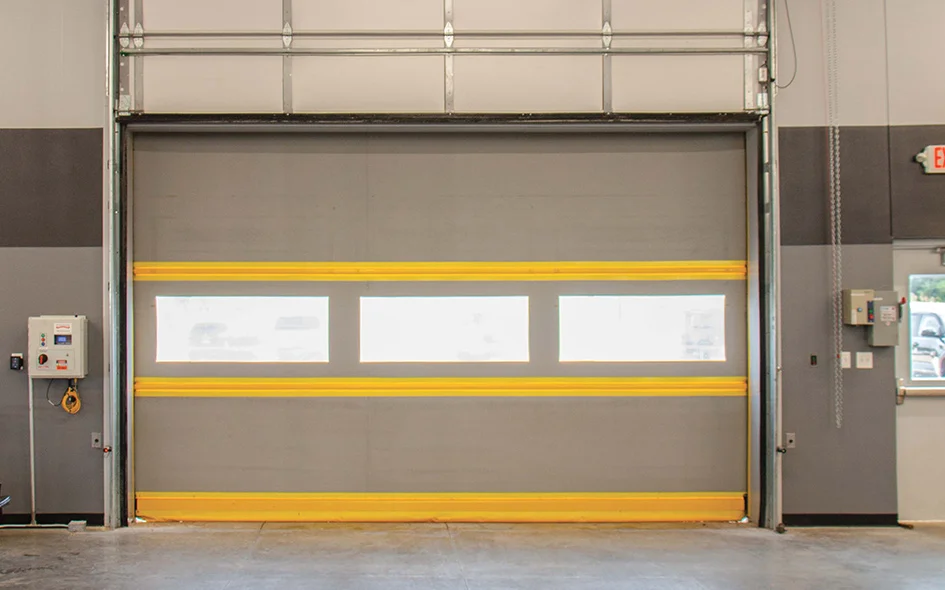

High-speed exterior fabric door model 993 with yellow safety strips and windows, designed for commercial use in warehouses and distribution facilities.

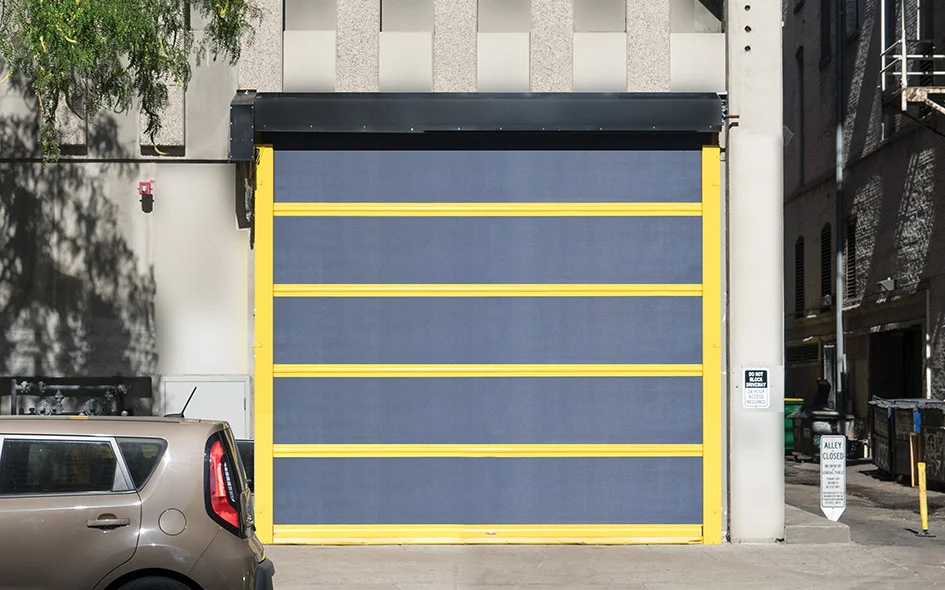

High-speed exterior fabric door model 993 with yellow stripes, designed for commercial use in parking garages and warehouses.

High-speed exterior fabric door model 993 with bright orange fabric and yellow framing, designed for commercial applications like warehouses and parking garages.

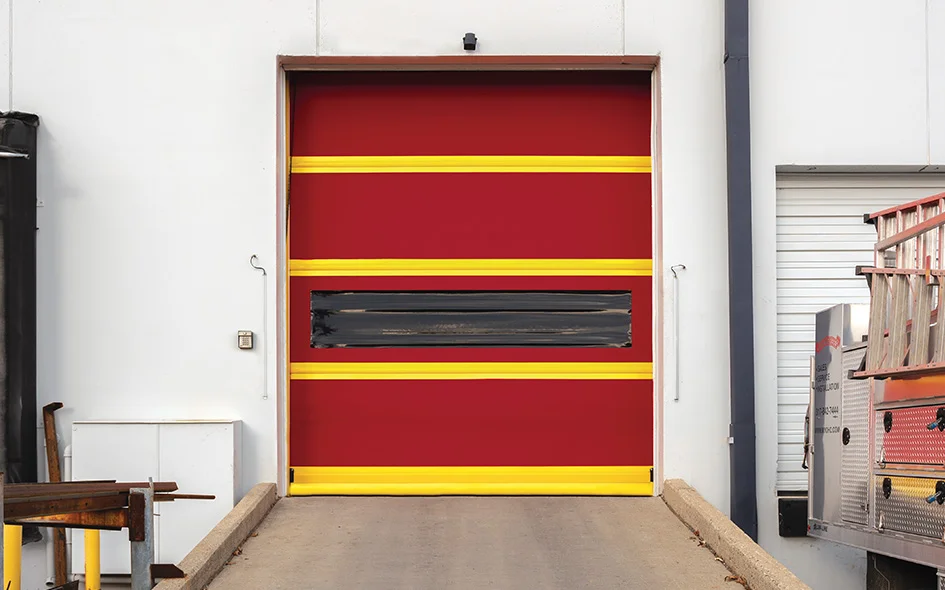

High-speed exterior fabric door model 993 in red and yellow, designed for commercial use, featuring a window and heavy-duty construction, suitable for parking garages and warehouses.

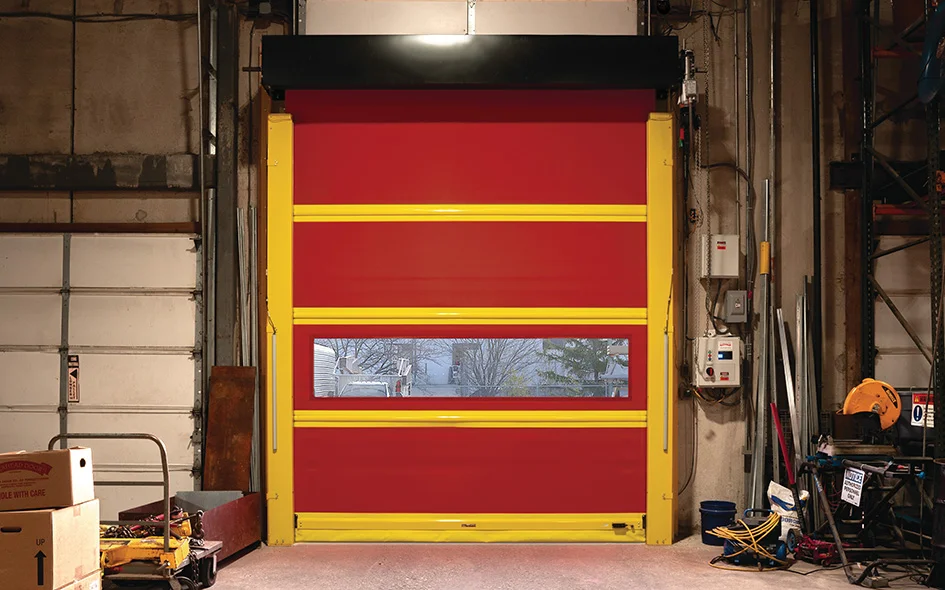

High-speed exterior fabric door model 993 in red and yellow, designed for commercial applications, featuring a window and heavy-duty construction.

High Speed Exterior Fabric Door - 993

Model 993

RapidFlex^® Model 993 is a strutted, exterior heavy-duty high speed fabric door with independently tested wind load of up to 19.5 psf*. Its industry-leading standard safety features include reversing edge, two sets of infrared obstruction detection sensors and door stop device.

Perfect for parking garages, manufacturing, warehouse and distribution facilities.

Overview
Documents

Construction

Product Specifications
Standard Max Width	20′
Standard Max Height	20′
Speed	Up to 65″ per second
Break-away Self-reset	Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event
Wind Strut	Metal struts with roller windlocks
Curtain Material	3 layers of PVC coated polyester with 2 layers of polyester weave
Header Braces	Multiple braces across entire width strengthen and combat sagging
Hood	Protection from debris and moisture
Operation	Direct drive motor and gearbox system with a door stop device
Control Panel	Variable frequency drive NEMA 4X cULus listed Onboard self diagnostic and service reminder Built-in padlockable field disconnect
Obstruction Safety Detection	Infrared sensors mounted in-plane to the door curtain at 18″ and 50″ – 54″ from floor
Reversing Safety Edge	Wireless reversing edge
Available Supply Voltages**	208V AC 1PH†, 220V AC 1PH, 208V AC 3PH†, 230V AC 3PH, 460V AC 3PH, 575V AC 3PH† (†requires stand-alone mounted transformer)
Wind Load*	Up to 19.5 psf

_{** Single phase available up to 10’x10′ doors.}
_{* Pressure/wind resistance value is the ultimate pressure tested at door width of 16′.}

Warranty

5-year Limited

BIM

RapidFlex High Speed Exterior Fabric Door – Model 993 BIM (opens in a new window)

Shop Drawing

Specifications

Product Literature
