Fire-Rated Rolling Counter Door - 660
Model 660

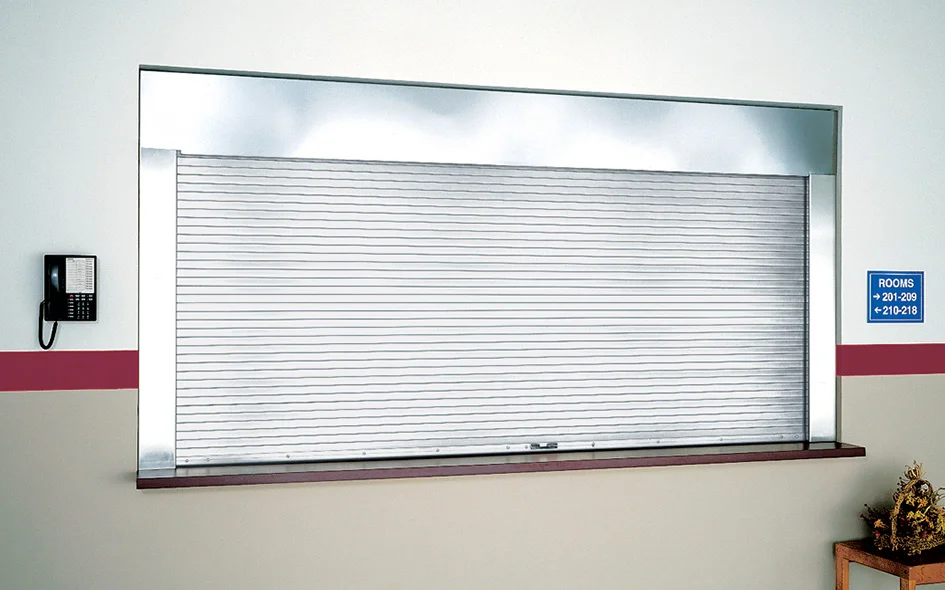

Fire-Rated Counter Doors with Stainless Steel Curtain, Frame and Hood
The Model 660 integral frame fire-rated counter doors provide a handsome finished appearance for a variety of applications, including food service counters, schools, concessions, hospitals, cafeterias and retail settings. These doors are available for openings up to 9’5” x 4’5” (2870 mm x 1346 mm) and carry a UL 1-1/2 hour label for masonry and non-masonry fire walls. The 660 Series integral frame doors are factory assembled as a complete unit with fully welded frames. The curtain, frame, guides, sill, hood and bottom bar are stainless steel.
Additional safety and protection features are available, including: Fire Sentinel® time-delay release device, smoke detectors, horns, and strobes.
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 9’5″ (2870 mm) |
| Standard Max Height | 4’5″ (1346 mm) |
| Labels | UL 1-1/2 hour Class B for masonry and non-masonry fire walls |
| Operation | Manual Push-up |
| Curtain | Interlocking 22-gauge stainless steel slats |
| Integral frame and guides | No. 4 finish stainless steel |
| Bottom bar | To match curtain material |
| Sill | 14 gauge stainless steel still completely enclosed with fireproof acoustic filler |
| Hood | No. 4 finish stainless steel |
| Mounting | Between jambs |
| NFPA-80 compliant |
Warranty
- OEM limited
