Commercial Door Operator RSX®

Standard Duty

The UL 325 2010 compliant RSX^® standard duty commercial operators provide easy operation with superior functionality for the most stringent applications. This functionality comes from many innovative, state-of-the-art performance features.

Overview
Documents

Product Specifications

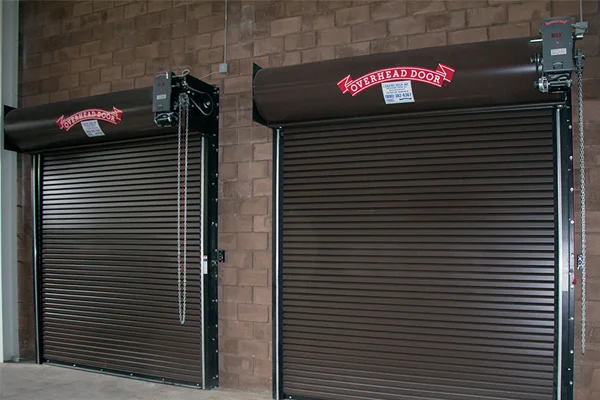

Mounting	Rolling steel doors: With or without hoist, front of hood, top of hood, bench mount and wall mount. Hoist models are left or right-hand. Rolling steel models come with brake. Sectional steel doors: Standard, side mount, and dual trolley applications. Side mount and center mount direct couple to the door shaft with or without hoist. Hoist models are left or right-hand. 1/2 horsepower models available with or without brake (3/4 hp and 1 hp models come standard with brake).
Motor	Continuous duty motor available in 1/2, 3/4 and 1 horsepower, single or three-phase. Totally enclosed non-ventilated (TENV) construction, and totally enclosed fan cooled (TEFC) construction units are available as options.
Advanced radio receiver system with auto seek frequency range	Quickly and easily learns up to 250 CodeDodger® transmitters. This system will automatically cycle between 315 and 390 frequencies. It can add and delete transmitters from the menu and easily identify which transmitters are operating the door.
Drive reduction	Primary reduction is SuperBelt®, an auto tension poly-V flex belt that does not require adjustment. Secondary reduction is by chain and sprocket.

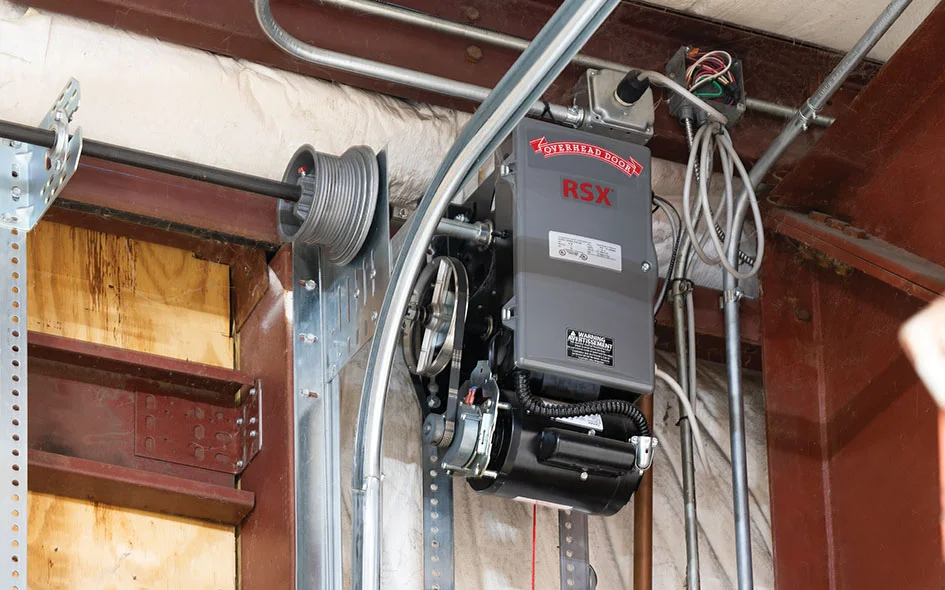

Direct coupling	Provides fast, easy installation and prevents chain slacking. Available on sectional side/center mount jackshaft and hoist units.
Mechanical brake system	24V DC disc brake. Fewer mechanical parts for improved reliability.
Clutch	Adjustable disc-type helps protect door and operator from major damage should the door meet an obstruction.
Easy installation and trouble-shooting with 16 character LCD display	Intelligent menu structure and expanded self-diagnostics including cycle counter functionality.
Adjustable shaft	Output shaft can be moved from one side to the other, providing flexible installation options on sectional side mounting.
Trolley rail assembly	High strength 2 inch rolled angle for added strength and durability.
NEMA 4/4X operators	Available for wet, dusty, and corrosive environments.
Warranty	RSX^® operator features a 2-year or 20,000 cycle limited warranty.
Easy limit setting with LimitLock®	An electro/mechanical limit sensor that makes it easy to set and maintain limits.
Voltage freedom with Voltamatic®	One unit for single phase voltages (115/208/230V), one unit for three phase voltages (208/230/460V) and one unit for three phase 575V.
Extra door system durability with Progressive Braking*	DC brake system brings the door to a soft stop for less wear and tear on the system.

Options
Models	RSX® Trolley – Sectional Door RSX® Jackshaft with and without Hoist – Side/Center Mount on Sectional Door RSX® Jackshaft with and without Hoist – Rolling Steel
RSX® Standard Duty models	Single phase (115/208/230V) Three phase (208/230/460V) Three phase (575V), 1/2, 3/4, and 1 HP
CodeDodger® commercial dual transmitters (optional)	Available in 1, 2, 3, 4-button and Open/Close/Stop versions. Automatically operates at both 315 and 390 MHz every time a button is pressed.
