Aluminum Glass Doors 521
Model 521

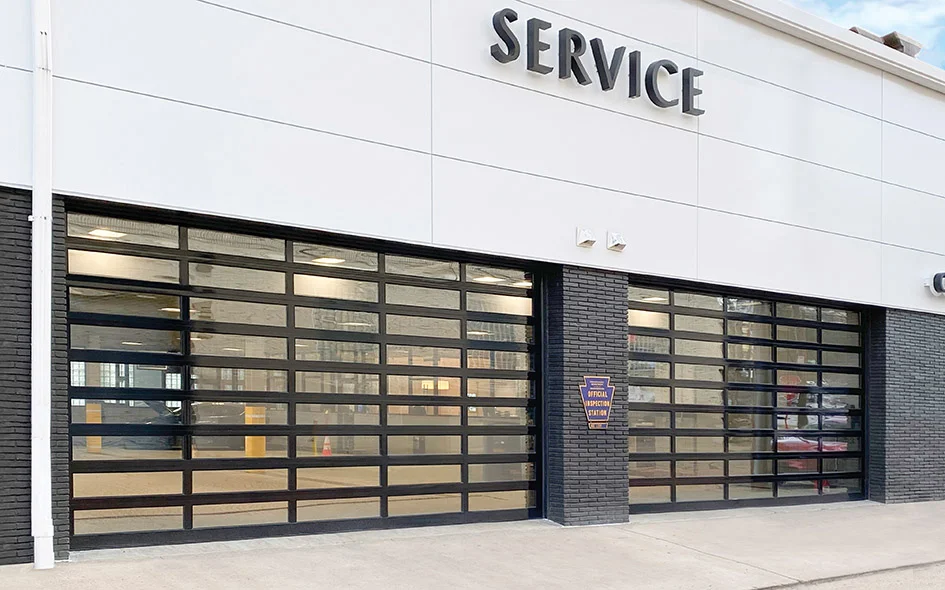

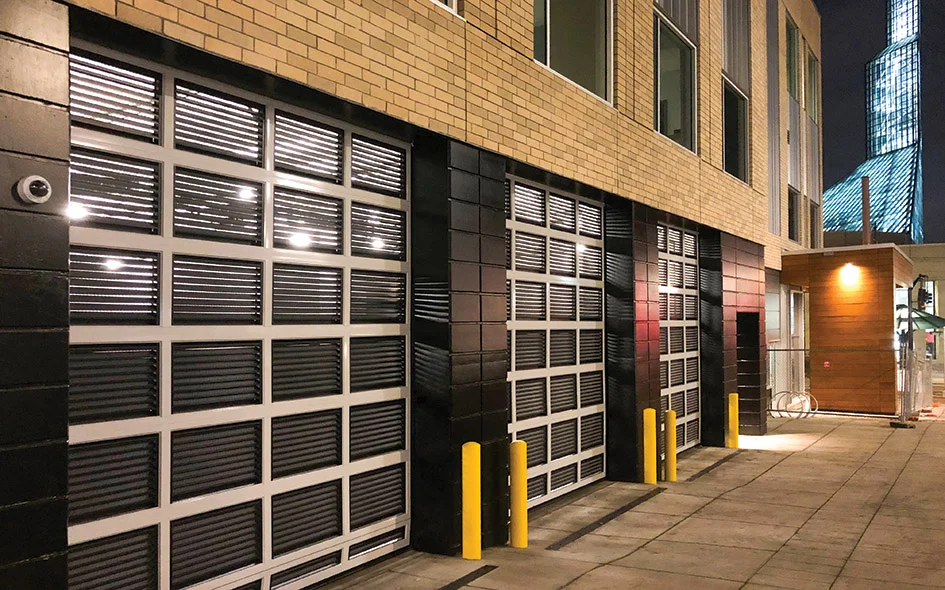

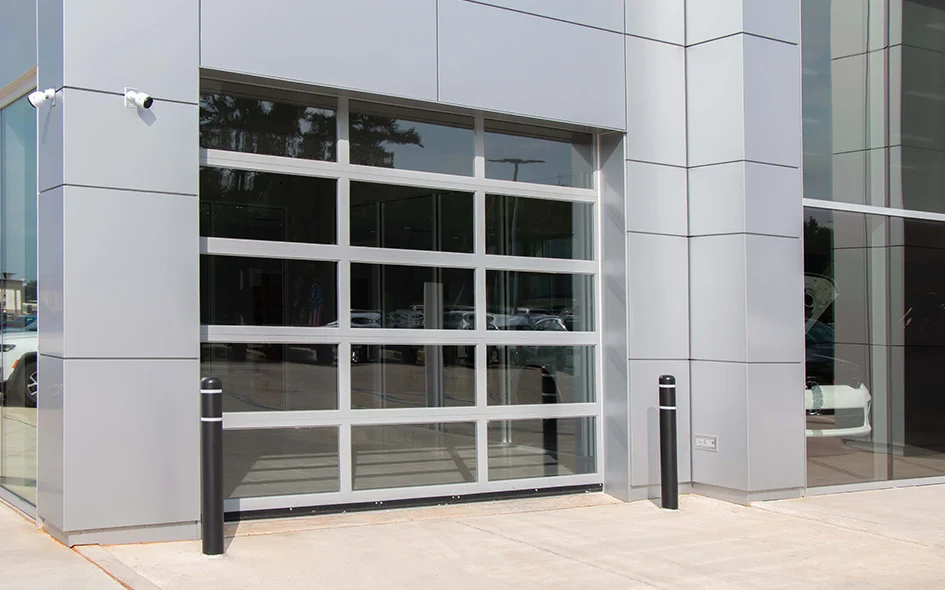

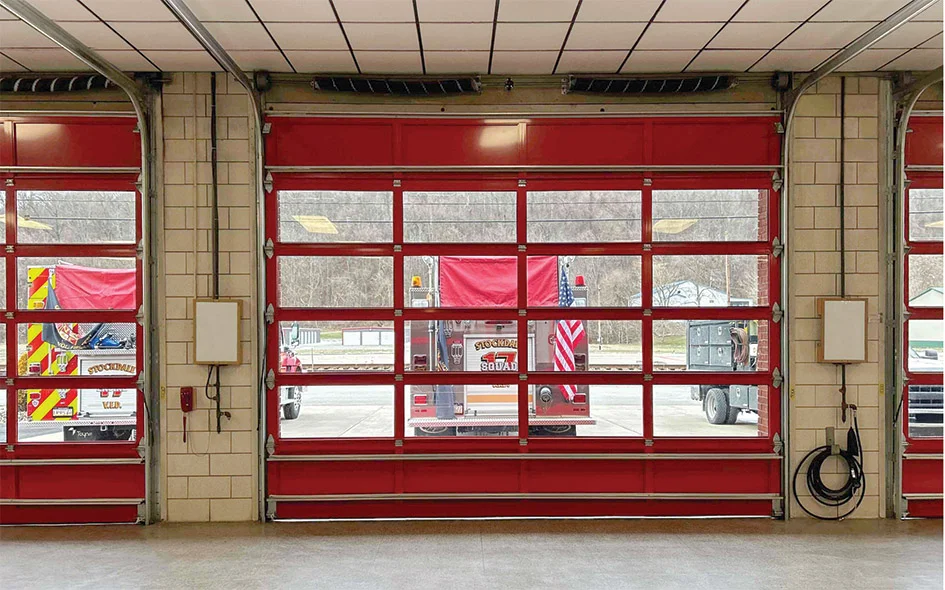

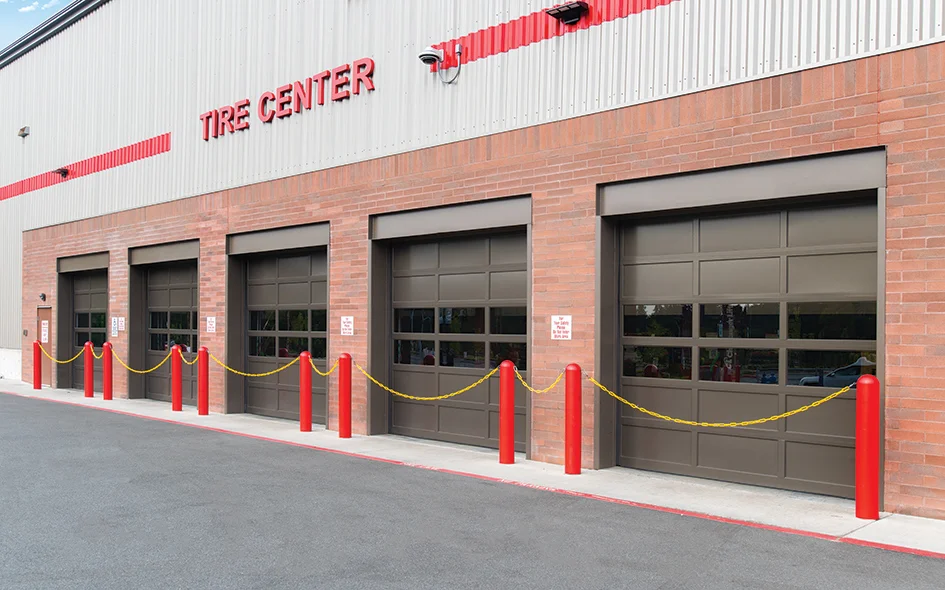

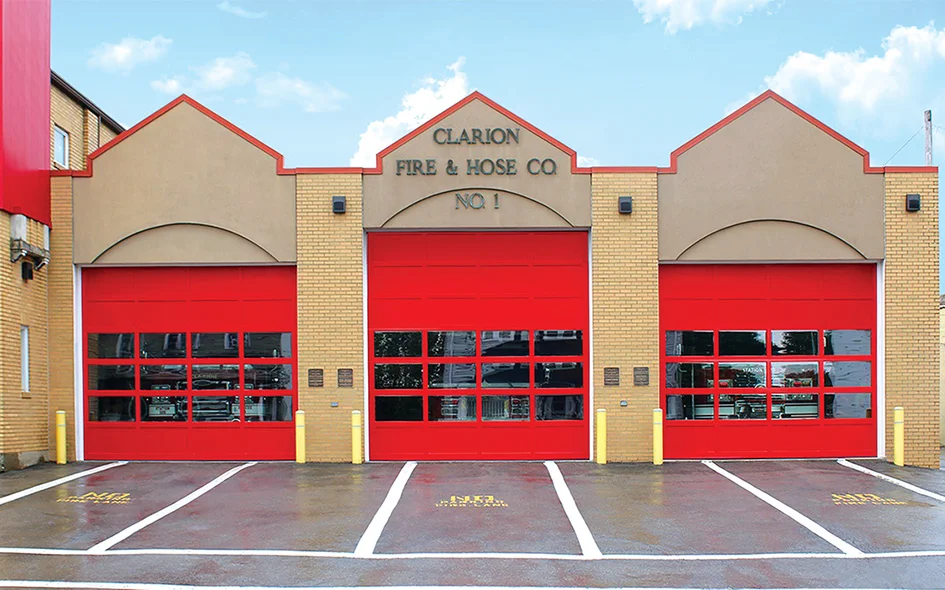

Aluminum Glass Door model 521 is a sectional aluminum door appropriate for environments where maximum light infiltration and/or visual access is required. Designed to fit openings up to 26’2″ (7976 mm) wide and 20’1″ (6121 mm) high, the Model 521 features a wide, 2-11/16″ (68 mm) center stile, 3-3/4″ (95 mm) or 4-1/2″ (114 mm) bottom rail, based on door size.
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 26’2″ (7976 mm) |
| Standard Max Height | 20’1″ (6121 mm) |
| Section thickness | 1 3/4″ (45 mm) |
| Material | 6063-T6 aluminum |
| Standard finish | 204R-1 clear anodized(painted white at no charge) |
| Center stile width | 2 11/16″ (68 mm) |
| End stile width | 3 5/16″ (84 mm) |
| Top rail width | 2 3/8″ (60 mm) or 3 3/4″ (95 mm) |
| Top intermediate rail width | 2 1/8″ (54 mm) |
| Bottom intermediate rail width | 1 19/32″ (40 mm) |
| Bottom rail width | 3 3/4″ (95 mm) or 4 1/2″ (114 mm) |
| Weatherseals | Bottom, flexible PVC |
| Standard springs | 10,000 cycle |
| Track | 2″ (51 mm) |
| Mounting | Angle |
| Operation | Manual pull rope |
| Hinges and fixtures | Galvanized steel |
| Lock | Galvanized, interior-mounted single unit |
Warranty
- 1-year limited
