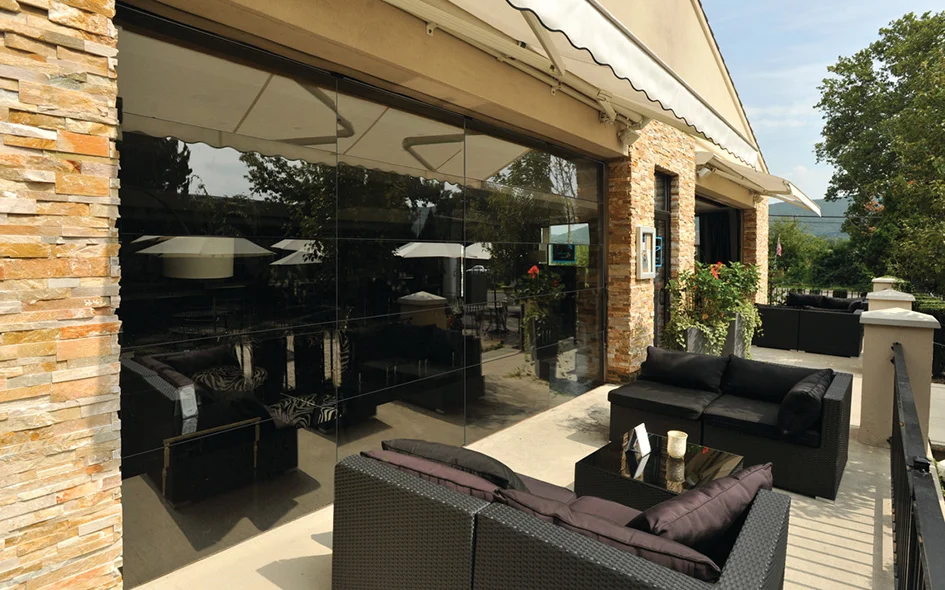

Aluminum Glass Door model 522 with frameless design, showcasing outdoor seating area and stone wall, ideal for commercial applications.

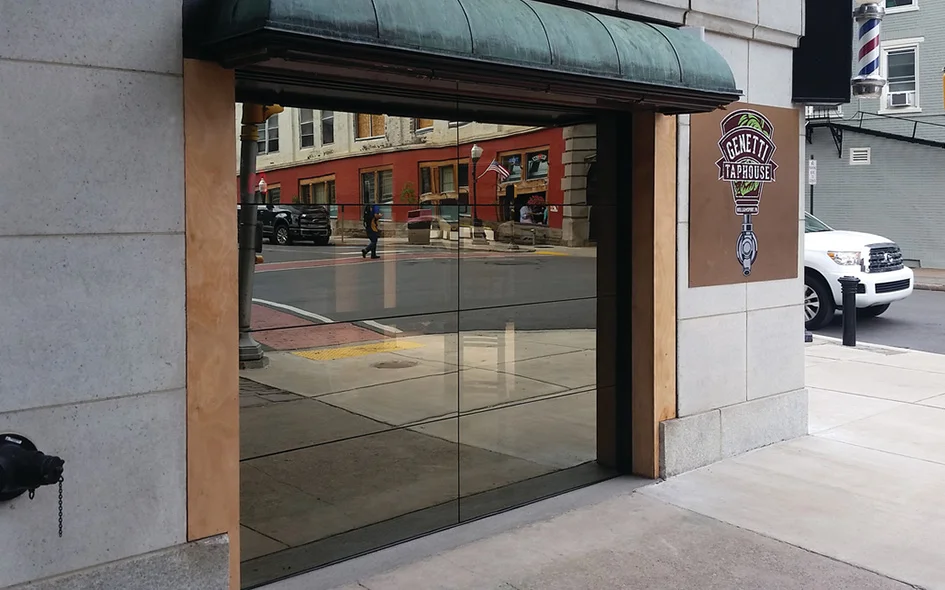

Aluminum Glass Door model 522 featuring a frameless design, installed at Genetti Taphouse, showcasing its seamless integration with the building's aesthetics.

Aluminum Glass Door - 522

Model 522

Aluminum Glass Door model 522 is designed in sizes up to 18’ 2” (5486 mm) wide and 14’ 1” (4318 mm) high. This aluminum full-view door, featuring a frameless design, is ideal for restaurants, auto dealerships and any application where the door needs to integrate seamlessly with the aesthetics of the building. Available with five glass options.

Overview
Documents

Construction

Product Specifications
Standard Max Width	18’2″ (5486 mm)
Standard Max Height	14’1″ (4318 mm)
Section thickness	1 3/8″
Material	6063-T6 aluminum
Standard finish	White, Black or Bronze Powder Coat
Center stile width	3″
End stile width	3 1/2″
Top rail width	3 1/2″
Top intermediate rail width	1 5/8″
Bottom intermediate rail width	1 3/8″
Bottom rail width	3 1/2″
Weatherseals	Bottom, flexible PVC
Standard springs	10,000 cycle
Track	Provide track as recommended by manufacturer to suit suit loading required and clearance available
Mounting	Angle
Operation	Manual pull rope
Hinges and fixtures	Galvanized steel
Lock	Galvanized, interior-mounted single unit
